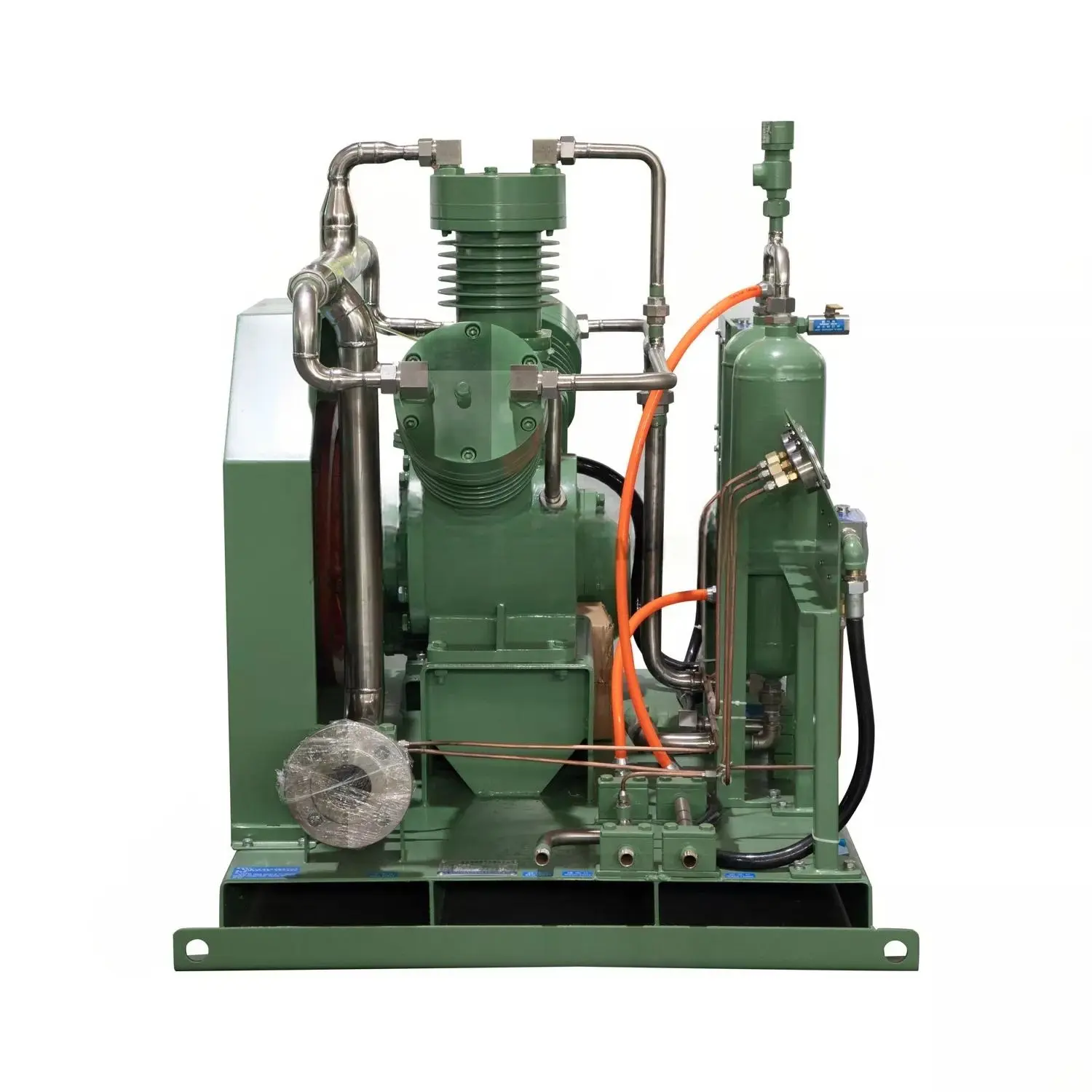

Industrial Hydrogen Piston Compressor for Refinery & Chemical Applications

Industrial Hydrogen Piston Compressor for Refinery & Chemical Applications

Industrial Hydrogen Piston Compressor for Refinery & Chemical Applications



Product Overview

Our industrial hydrogen piston compressors are engineered for critical applications in refineries and the chemical industry. Designed to compress pure hydrogen for various processes, they guarantee maximum reliability and gas purity. These robust, skid-mounted units are built for continuous duty in demanding environments, offering flexible configurations to meet specific pressure and flow requirements.


￥ 0.00
0.00
Quantity：
Consultation


Industrial Hydrogen Piston Compressor for Refinery & Chemical Applications



Product Overview

Our industrial hydrogen piston compressors are engineered for critical applications in refineries and the chemical industry. Designed to compress pure hydrogen for various processes, they guarantee maximum reliability and gas purity. These robust, skid-mounted units are built for continuous duty in demanding environments, offering flexible configurations to meet specific pressure and flow requirements.


Key Features & Specifications

Total Oil-Free Operation

  • Advanced non-lubricated piston technology ensures 100% oil-free hydrogen delivery

  • Critical for protecting sensitive catalysts in hydrogenation, hydrocracking, and polysilicon production

  • Eliminates contamination risks in sensitive processes

Heavy-Duty Continuous Operation

  • Engineered for robust 24/7 operation in demanding refinery environments

  • High-reliability components ensure maximum uptime and long service life

  • Built to withstand challenging industrial conditions

Flexible Configuration Options

  • Single or double-stage compression tailored to specific pressure requirements

  • Common applications:

    • Boosting hydrogen from production units (~150-200 BAR for storage)

    • High-pressure fueling for hydrogen refueling stations (400-450 BAR)

Easy Installation & Mobility

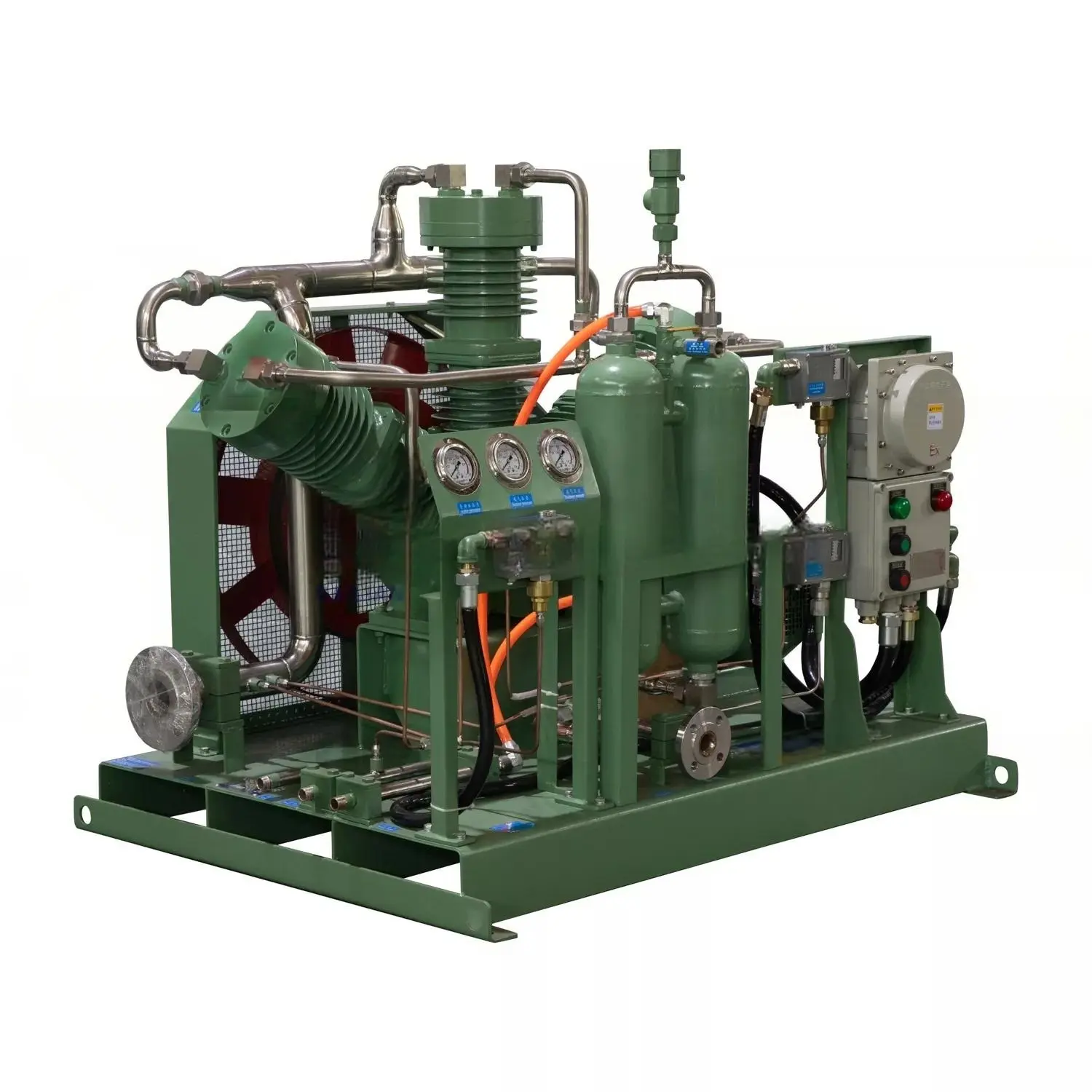

  • Complete pre-assembled skid-mounted design

  • Compressor, driver, and ancillary systems on a single compact skid

  • Facilitates quick installation, easy relocation, and reduced commissioning costs

Adaptable Cooling Systems

  • Available with efficient air-cooling or water-cooling systems

  • Flexible options to suit plant utilities and ambient conditions

Technical Parameters

ModelWorking MediumInlet PressureOutlet PressureMotor PowerFlow RateVoltageCooling Method
1/5.0HydrogenAtmosphere0.5 MPa, 72 Psig0.75 kW1 Nm³/hCustomizable*Air/Water Cooling
15/0.5-9Hydrogen0.05 MPa, 7 Psig0.9 MPa, 130 Psig3 kW15 Nm³/hCustomizable*Air/Water Cooling
20/0.5-9Hydrogen0.05 MPa, 7 Psig0.9 MPa, 130 Psig4 kW20 Nm³/hCustomizable*Air/Water Cooling
17/3.4-21Hydrogen0.34 MPa, 49 Psig2.1 MPa, 300 Psig3 kW17 Nm³/hCustomizable*Air/Water Cooling
16/0.5-80Hydrogen0.05 MPa, 7 Psig81 MPa, 150 Psig7.5 kW16 Nm³/hCustomizable*Air/Water Cooling
2/2-150Hydrogen0.2 MPa, 28 Psig152 MPa, 160 Psig1.5 kW2 Nm³/hCustomizable*Air/Water Cooling
10/4-200Hydrogen0.4 MPa, 57 Psig202 MPa, 875 Psig4 kW10 Nm³/hCustomizable*Air/Water Cooling
40/200HydrogenAtmosphere202 MPa, 875 Psig22 kW40 Nm³/hCustomizable*Air/Water Cooling
50/4-200Hydrogen0.4 MPa, 57 Psig202 MPa, 875 Psig18.5 kW50 Nm³/hCustomizable*Air/Water Cooling
50/2-150Hydrogen0.2 MPa, 28 Psig152 MPa, 160 Psig22 kW50 Nm³/hCustomizable*Air/Water Cooling
120/2-17Hydrogen0.2 MPa, 28 Psig1.7 MPa, 244 Psig22 kW120 Nm³/hCustomizable*Air/Water Cooling
100/0.5-25Hydrogen0.05 MPa, 7 Psig2.5 MPa, 360 Psig30 kW100 Nm³/hCustomizable*Air/Water Cooling
200/3HydrogenAtmosphere0.3 MPa, 43 Psig30 kW200 Nm³/hCustomizable*Air/Water Cooling
200/0.8-12Hydrogen0.08 MPa, 11.5 Psig1.2 MPa, 172 Psig30 kW200 Nm³/hCustomizable*Air/Water Cooling

**Customizable Voltage: 220V/380V/415V/440V 50/60HZ*

Applications

Refinery Operations

  • Hydrogen Make-up Gas in Refineries

  • Hydrocracking and hydrotreating processes

  • Catalyst protection and process optimization

Energy & Mobility

  • Hydrogen Refueling Stations (HRS)

  • Photovoltaic Power-to-Hydrogen Energy Storage Systems

  • Fuel cell hydrogen supply

Chemical Processing

  • Ammonia Cracking for Hydrogen Generation

  • Polysilicon Production and Chemical Synthesis

  • Various chemical manufacturing processes

Operational Benefits

  • Proven Reliability: Designed for continuous operation in critical processes

  • Gas Purity Assurance: 100% oil-free operation protects sensitive equipment

  • Installation Flexibility: Skid-mounted design adapts to various site conditions

  • Energy Efficiency: Optimized compression ratios reduce power consumption

  • Low Maintenance: Robust construction minimizes service requirements

Why Choose Our Hydrogen Compressors?

✅ Industry-Proven: Trusted by refineries and chemical plants worldwide
✅ Customizable Solutions: Tailored to specific pressure and flow requirements
✅ Quality Assurance: Built to the highest industrial standards
✅ Technical Support: Comprehensive service and maintenance support
✅ Global Compliance: Meets international safety and performance standards
