Product Description
In recent years, due to the rapid development of petrochemical industry, advanced new hydrogenation process is widely used in petroleum refining industry, which requires the machinery industry to provide complete sets of hydrogenation equipment, and hydrogen compressor is one of them.

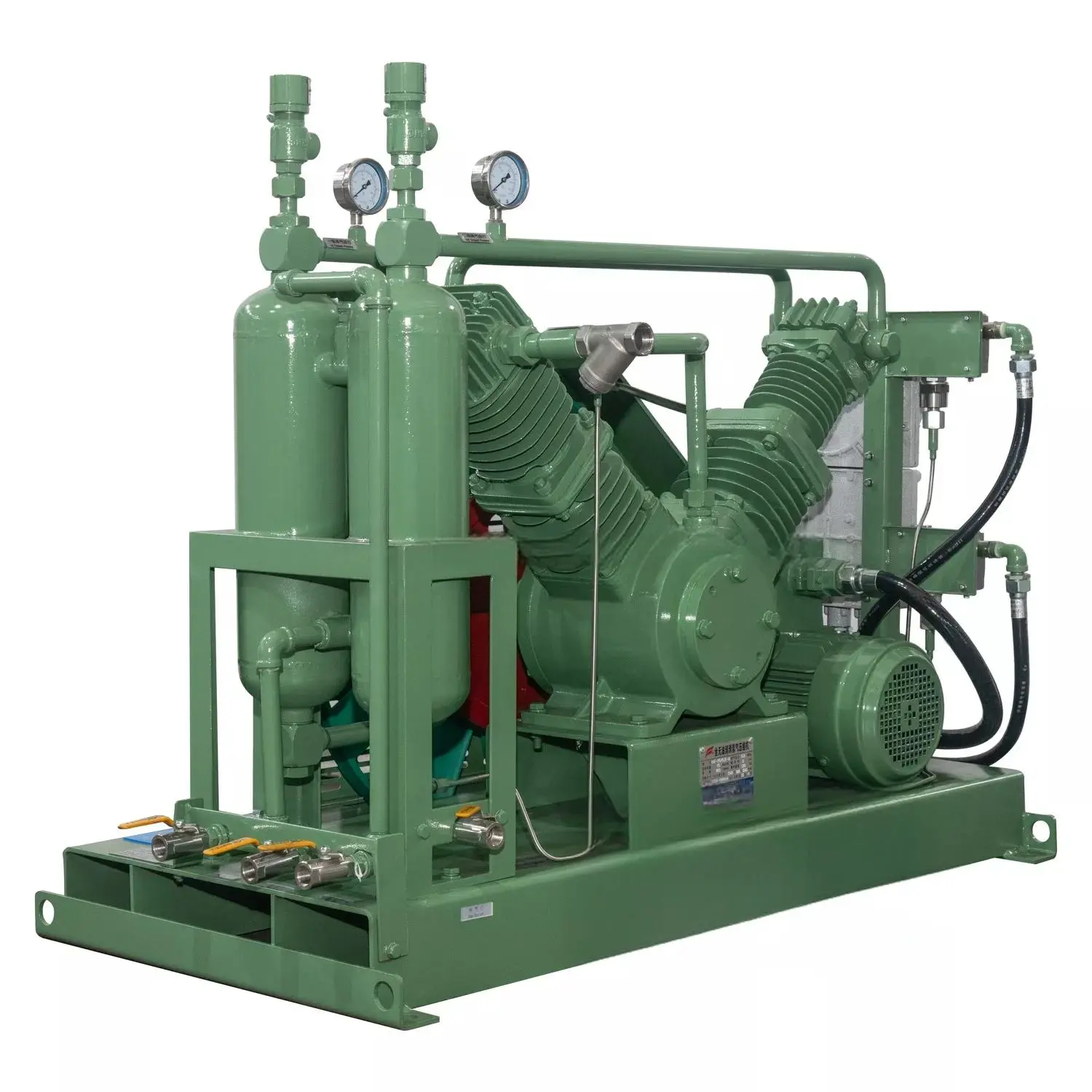

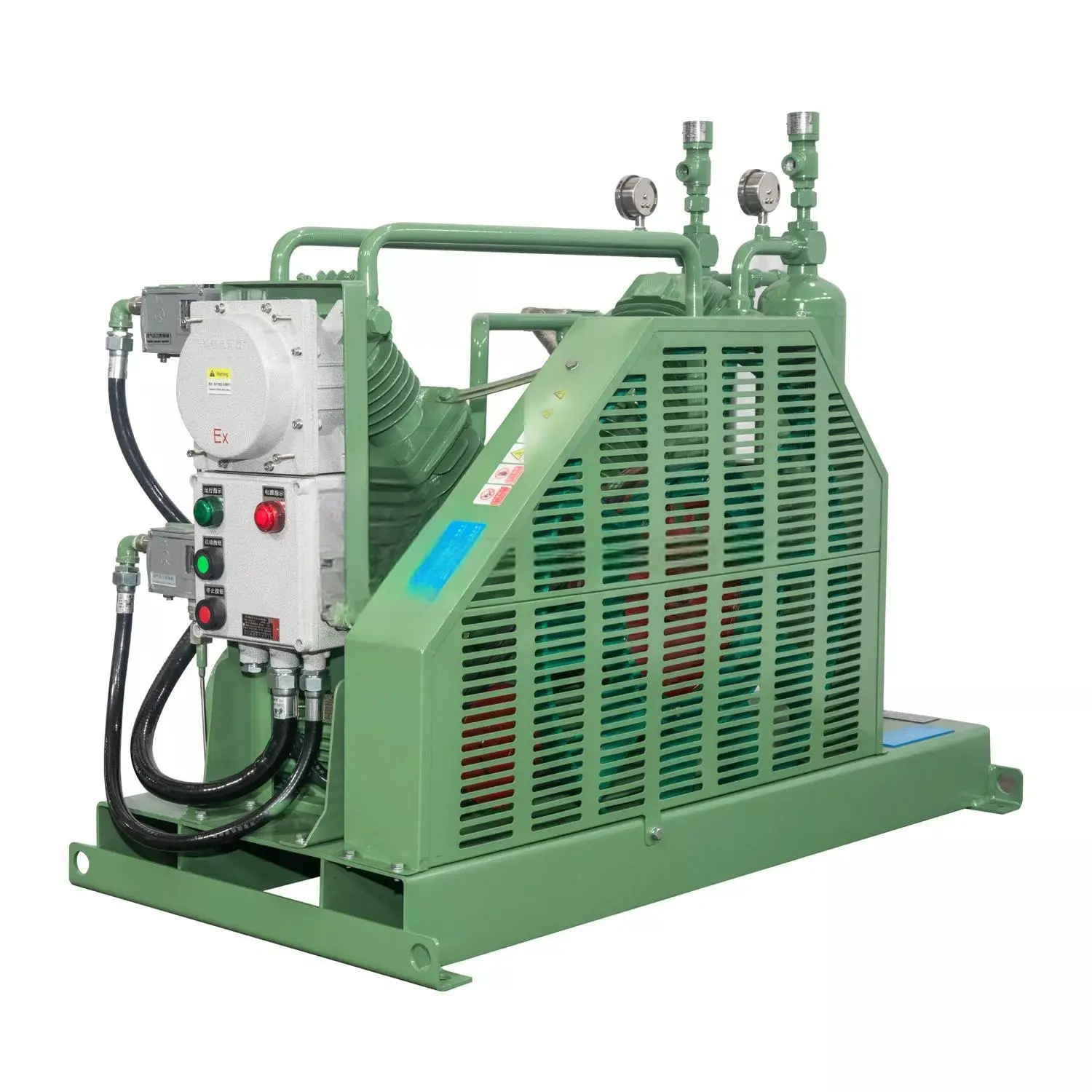

Oil-Free Hydrogen Compressor
Reliable & Safe Hydrogen Compression for Critical Applications
Our oil-free hydrogen compressors are engineered to deliver pure, contamination-free hydrogen compression with maximum safety and operational reliability. Designed for hydrogen energy infrastructure, chlor-alkali, and petrochemical industries, these compressors ensure zero oil contamination and explosion-proof operation in demanding environments.
Key Product Features
🔥 Explosion-Proof Safety
Motor certified to Ex dⅡCT4 explosion-proof standard for safe operation in flammable and explosive environments. Equipped with automatic pressure overload shutdown for enhanced operational safety.
💧 100% Oil-Free Compression
Cylinder section utilizes completely oil-free lubrication technology, ensuring compressed hydrogen maintains maximum purity without any oil contamination. Ideal for applications requiring the highest hydrogen quality standards.
⚙️ Efficient V-Type Design
V-shaped structural configuration ensures smooth operation with minimal vibration. Water cooling system effectively controls operating temperatures for reliable long-term continuous operation.
🛠️ Easy Installation & Maintenance
Compact design with simple foundation requirements facilitates quick on-site installation and reduces maintenance complexity. Belt-driven system allows for easy access and serviceability.
🌡️ Temperature Control
Integrated water cooling maintains discharge temperature below 50°C, protecting downstream equipment and ensuring consistent performance even during extended operation cycles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 10/8-20 |
| Working Medium | Dry Hydrogen Gas |
| Structure | Totally Oil-Free, V-Type |
| Compression Stages | 2 Cylinders |
| Rated Capacity | 10 Nm³/h (Standard Conditions) |
| Inlet Pressure | 0.8 MPa(G) |
| Outlet Pressure | 2.0 MPa(G) |
| Inlet Temperature | ≤ 40°C |
| Outlet Temperature (Before Cooling) | ≤ 130°C |
| Delivery Temperature | ≤ 50°C |
| Shaft Speed | 300 r/min |
| Cooling Method | Water Cooling |
| Motor Power | 1.5 KW, 380V, 50Hz, 3-Phase |
| Explosion-Proof Rating | dⅡCT4 |
| Drive Method | Belt Driven |
| Dimensions (L×W×H) | 1000 × 700 × 600 mm |
| Weight | 240 kg |
| Cooling Water Requirement | 300 kg/h, Inlet Pressure 2-4 bar Inlet Temp. 30°C, Outlet Temp. 38°C |
| Delivery Time | 45 Days |
Lubrication System
| Component | Lubrication Method |
|---|---|
| Crankshaft & Connecting Rod | Sealed Grease Lubrication |
| Cylinder Section | 100% Oil-Free Lubrication |
Connection Specifications
Gas Inlet/Outlet: 15 mm
Cooling Water Inlet/Outlet: 15 mm
Power Supply: 380V/50Hz/3-Phase (Customizable to other voltages)
Installation: Simple foundation required
Main Application Areas
1. Hydrogen Energy Infrastructure
Widely deployed in hydrogen refueling stations to provide high-pressure hydrogen for fuel cell vehicles. Ensures pure, oil-free hydrogen delivery critical for fuel cell system longevity and performance.
2. Chlor-Alkali Industry
Specifically designed to handle high-temperature, humid hydrogen generated by electrolysis processes. Maintains stable system pressure and ensures safe operation of electrolyzers while preventing oil contamination of sensitive chemical processes.
3. Petrochemical Industry
Provides essential hydrogen compression for advanced refining processes including hydrorefining and hydrocracking. Delivers reliable, contamination-free hydrogen supply for catalyst protection and process efficiency.
4. Laboratory & Research Facilities
Supplies high-purity hydrogen for analytical instruments, calibration gases, and experimental setups requiring oil-free compression.
5. Renewable Energy Systems
Integrates with hydrogen production from renewable sources for energy storage and distribution applications.
Safety & Control Features
Automatic Pressure Protection: Shuts down automatically when pressure exceeds set limits
Explosion-Proof Certification: Full compliance with hazardous area requirements
Temperature Monitoring: Continuous cooling system oversight
Robust Construction: Designed for continuous duty in industrial environments
Why Choose Our Hydrogen Compressor?
| Advantage | Benefit |
|---|---|
| Zero Oil Contamination | Protects downstream catalysts and fuel cells from damage |
| Explosion-Proof Design | Safe operation in hazardous environments |
| Energy Efficient | Optimized design reduces power consumption |
| Low Maintenance | Simple design with accessible components |
| Quick Delivery | 45-day standard lead time |
| Customizable | Adaptable to specific voltage and configuration requirements |
Installation & Operational Requirements
Foundation: Simple concrete foundation sufficient
Cooling Water: Clean water supply at 2-4 bar pressure required
Inlet Gas: Must be dry hydrogen gas without particulates
Environment: Well-ventilated area meeting explosion-proof installation standards
Maintenance: Regular inspection of belts, cooling system, and safety valves recommended
