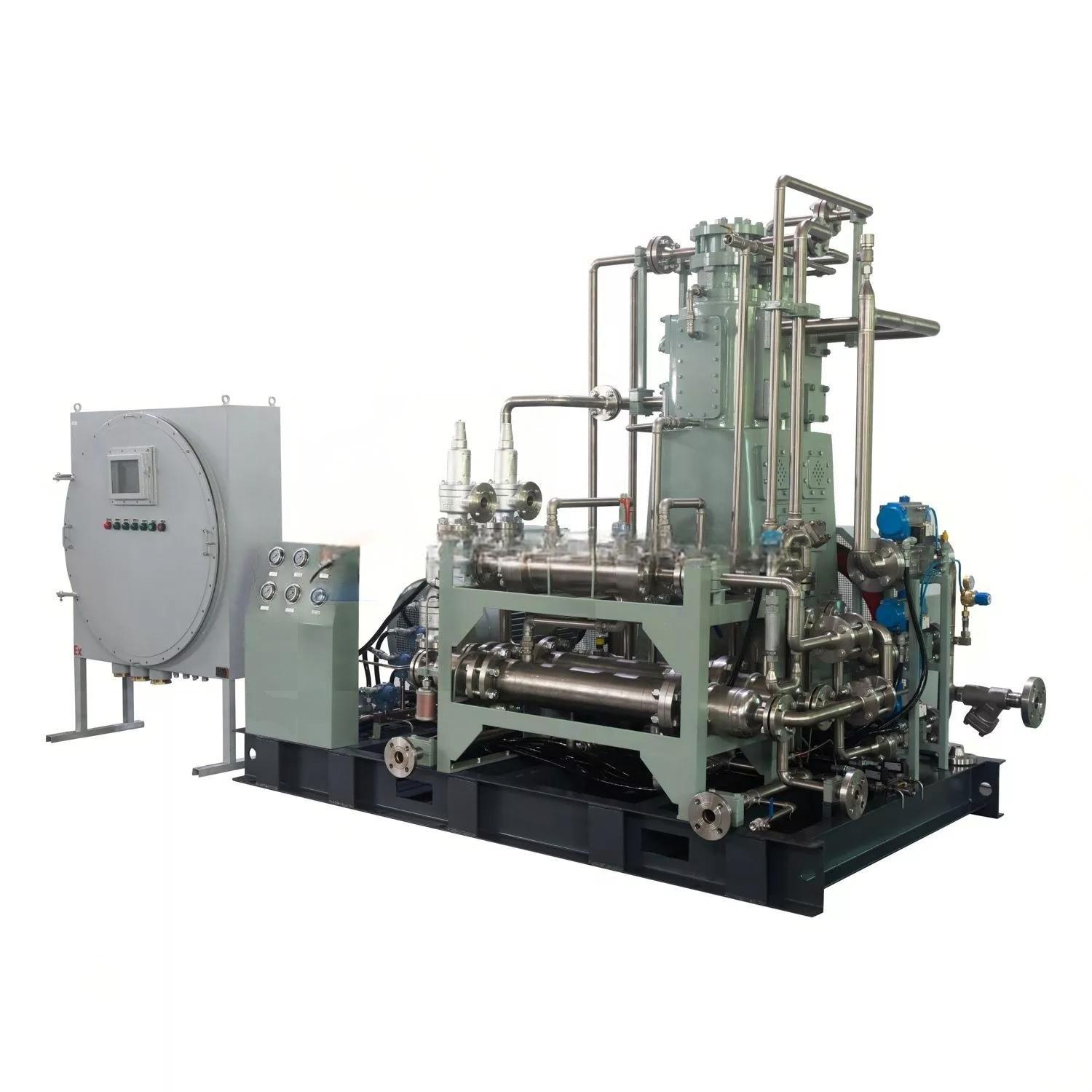

Explosion-Proof Oil-Free Hydrogen Compressor

Explosion-Proof Oil-Free Hydrogen Compressor

240/10-23 Explosion-Proof Oil-Free Hydrogen Compressor


Product Overview

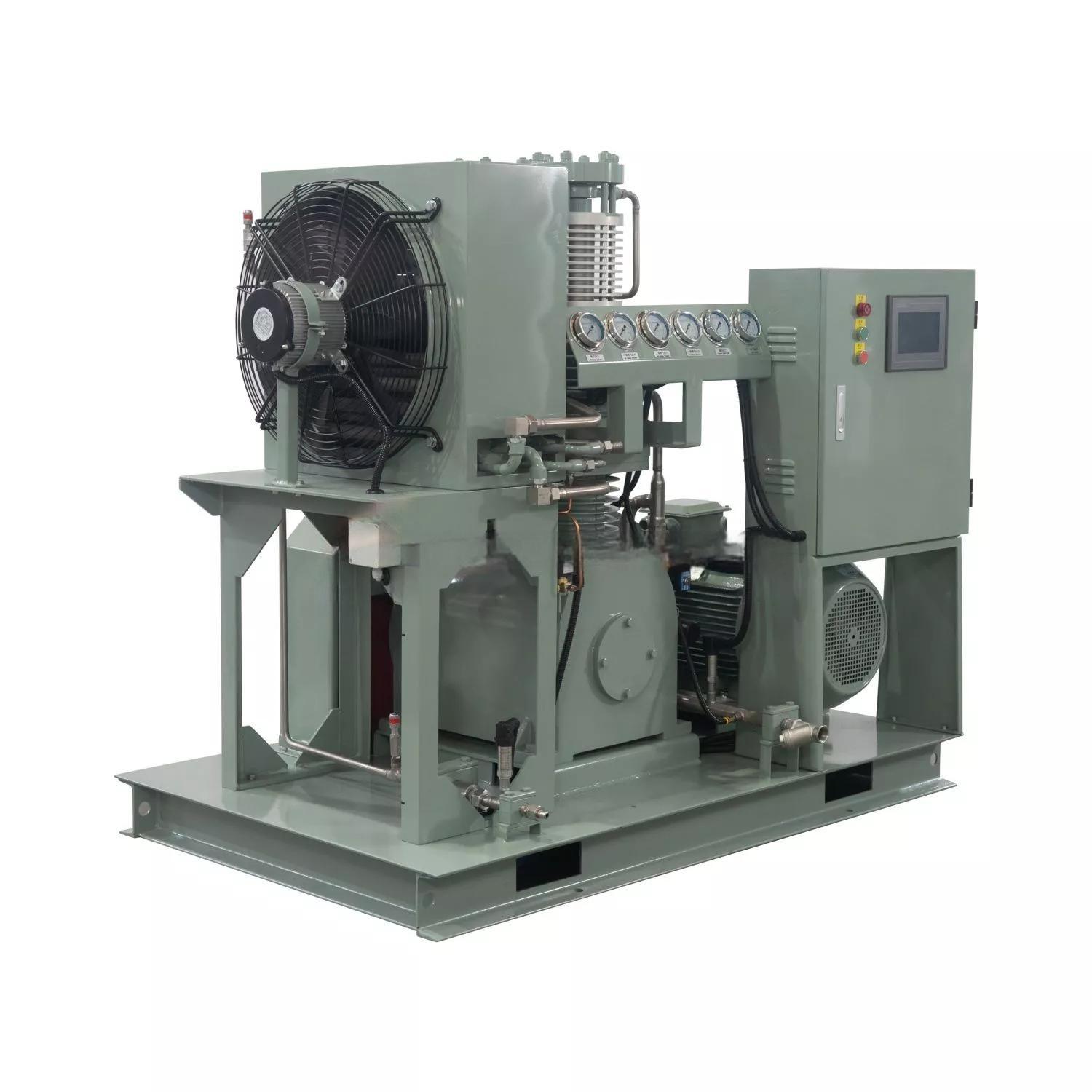

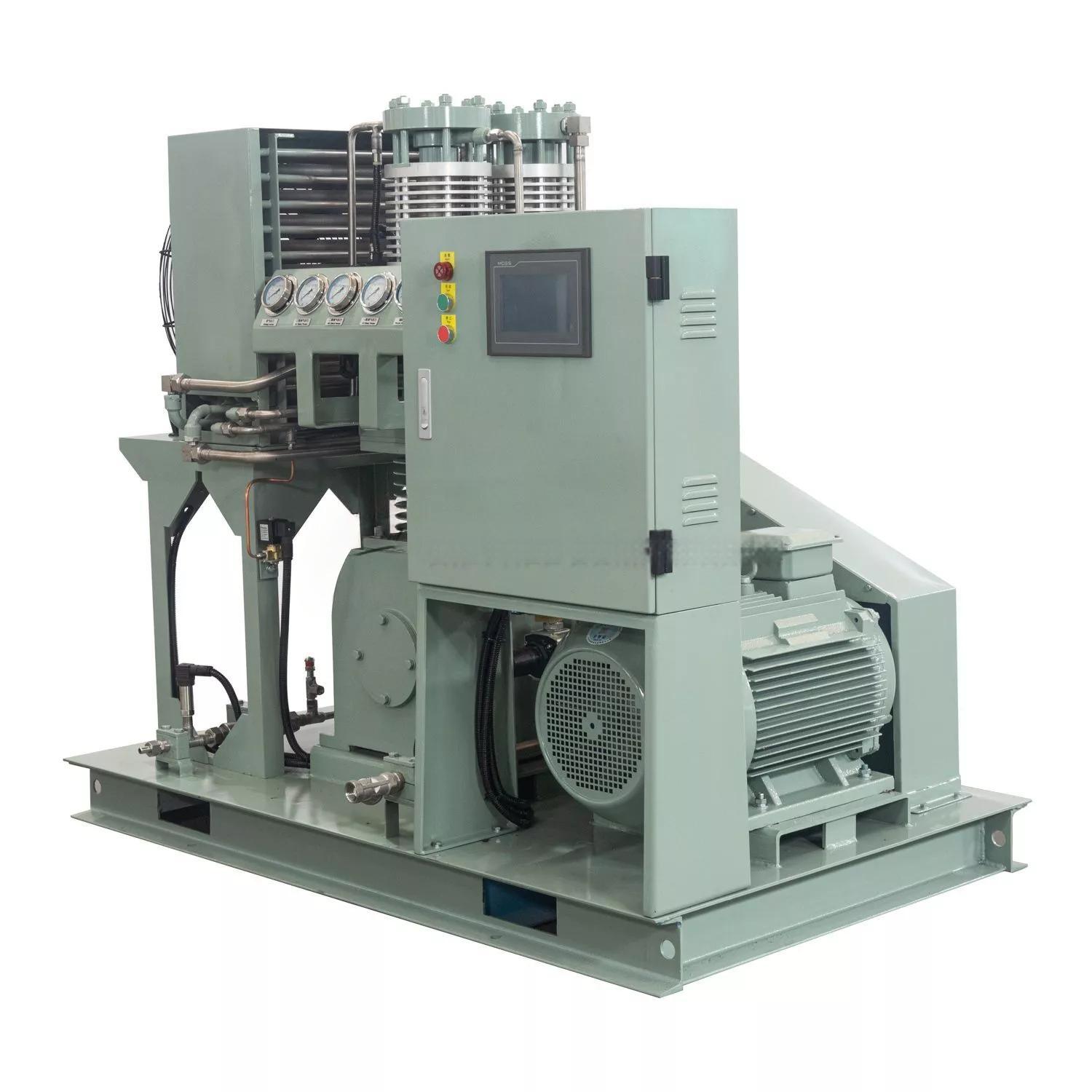

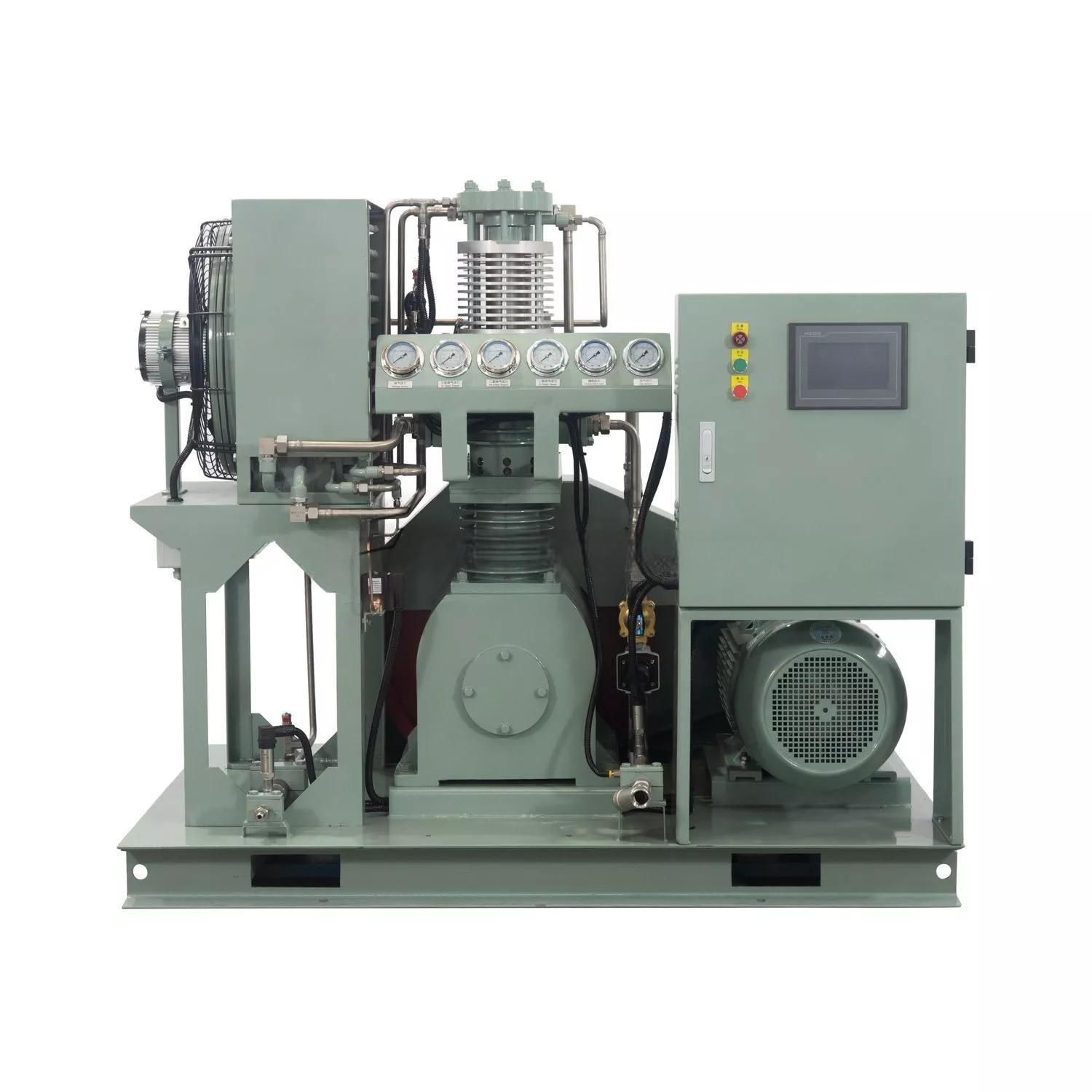

The 240/10-23 is an explosion-proof, single-stage oil-free compressor engineered for safe and efficient hydrogen gas compression. Built with a vertical skid-mounted structure and advanced oil-free components, it guarantees contamination-free operation in hazardous environments. Equipped with an ExdIICT4-certified motor and control system, it is ideal for hydrogen refueling stations, chemical processing, and renewable energy storage applications.


￥ 0.00
0.00


240/10-23 Explosion-Proof Oil-Free Hydrogen Compressor


Product Overview

The 240/10-23 is an explosion-proof, single-stage oil-free compressor engineered for safe and efficient hydrogen gas compression. Built with a vertical skid-mounted structure and advanced oil-free components, it guarantees contamination-free operation in hazardous environments. Equipped with an ExdIICT4-certified motor and control system, it is ideal for hydrogen refueling stations, chemical processing, and renewable energy storage applications.


Key Features

Safety & Certification

  • Explosion-Proof Certification: Compliant with ExdIICT4 standards for hazardous environments.

  • Nitrogen-Sealed Piston Rod: Continuous nitrogen purge system prevents hydrogen leakage.

  • Premium Safety Components: Includes safety valves, check valves, and explosion-proof electrical systems.

Efficiency & Performance

  • 100% Oil-Free Design: PTFE-filled pistons and guide rings eliminate lubrication needs.

  • Single-Stage Compression: Delivers 240 Nm³/h flow with discharge pressure of 2.3 MPa(G).

  • Low Energy Consumption: Optimized shaft power (≤12 kW) for cost-effective operation.

Durability & Maintenance

  • Robust Material Construction: Stainless steel gas valves/pipelines and cast iron frame.

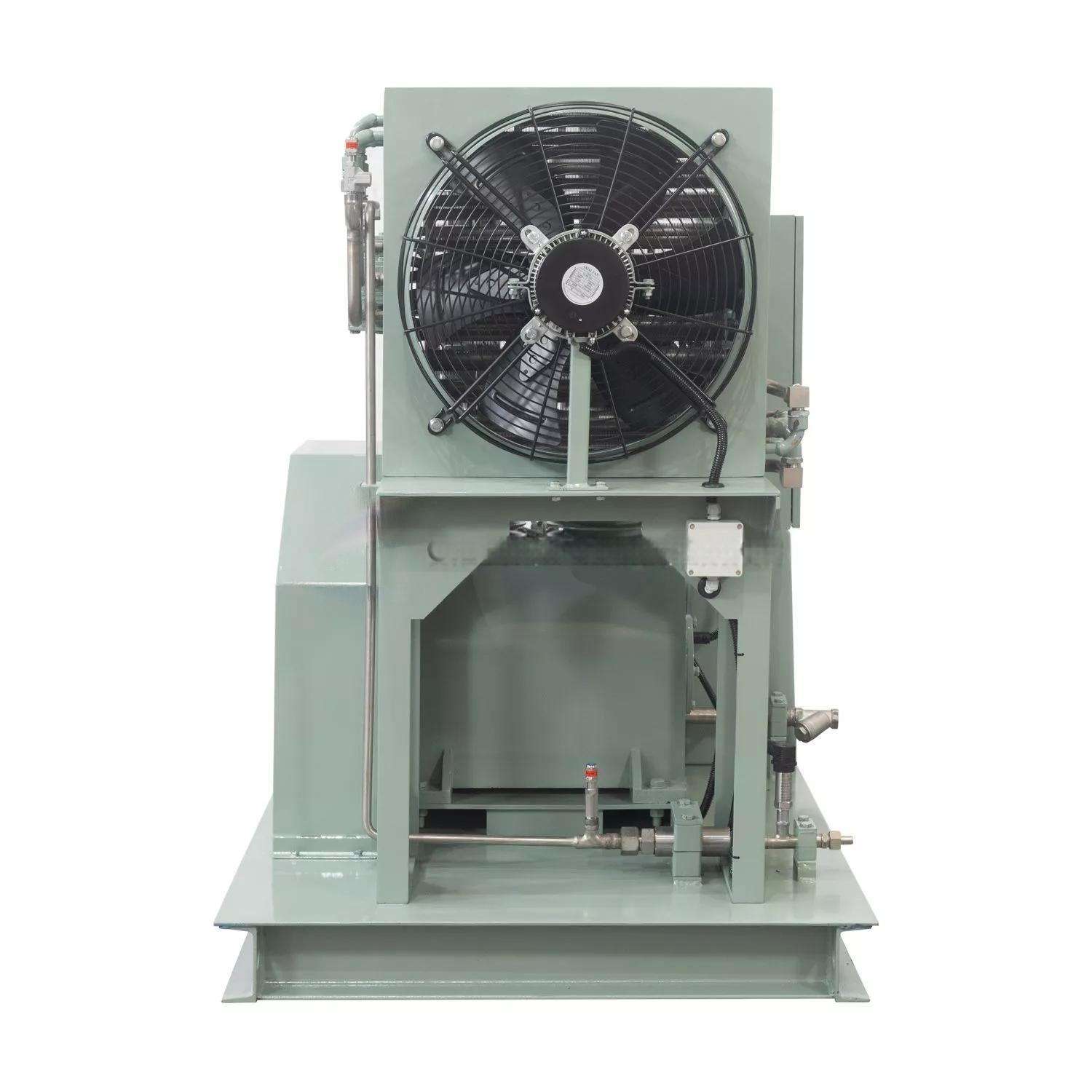

  • Air-Cooled System: No external water cooling required, reducing operational complexity.

  • Skid-Mounted Design: Pre-assembled for quick installation and minimal on-site work.

Technical Specifications

ParameterSpecification
Model240/10-23
MediumH₂ / Hydrogen
Flow Rate240 Nm³/h
Inlet Pressure1.0 MPa(G)
Discharge Pressure2.3 MPa(G)
Compression Stages1
Motor Power15 kW (ExdIICT4)
Shaft Power≤12 kW
Cooling MethodAir Cooling
Dimensions2200×1550×1800 mm
Weight1800 kg

Operating Parameters

  • Inlet Temperature: 0–40°C

  • Discharge Temperature: ≤65°C

  • Voltage: 380V/60Hz (Customizable)

  • Piston Stroke: 75 mm

  • Cylinder Quantity: 2

Scope of Supply

  • Main compressor engine with explosion-proof motor

  • Air cooler and skid-mounted chassis

  • Explosion-proof starter cabinet and oil pump motor set

  • Intake filter, safety valve, and check valve

  • Outlet matching flange and documentation

Material Construction

  • Frame & Crankshaft: Cast Iron

  • Gas Valves & Pipelines: Stainless Steel

  • Pistons & Guide Rings: Filled PTFE

Applications

  • Hydrogen Refueling Stations

  • Chemical and Petrochemical Plants

  • Renewable Energy Storage Systems

  • Fuel Cell Gas Supply

  • Laboratory and Pilot Plant Testing

Important Notes

  1. Lubricating Oil: To be provided by the user (use low-temperature lubricant below 5°C).

  2. Nitrogen Supply: Continuous nitrogen purge required (<3 Nm³/h).

  3. Electrical Protection: On-site components rated ExdIICT4.

  4. Delivery Time: 70–90 days after deposit payment.

Why Choose This Compressor?

  • ✅ Safe for Hazardous Environments: ExdIICT4 certification ensures reliable operation.

  • ✅ Zero Contamination: Oil-free design guarantees pure hydrogen output.

  • ✅ Energy Efficient: Low power consumption reduces operational costs.

  • ✅ Easy Installation: Pre-assembled skid minimizes setup time.

  • ✅ Proven Durability: Stainless steel and cast iron construction for long service life.
