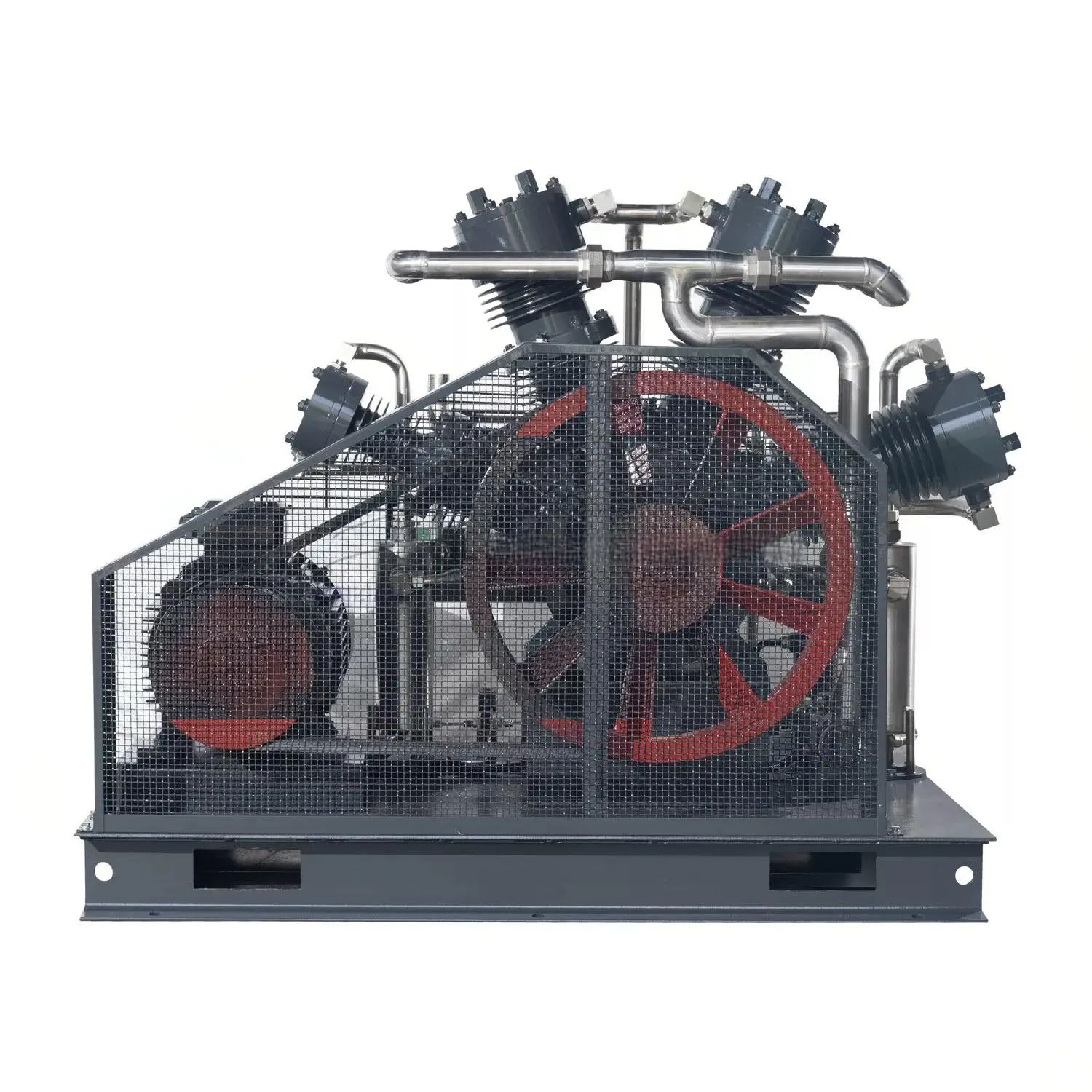

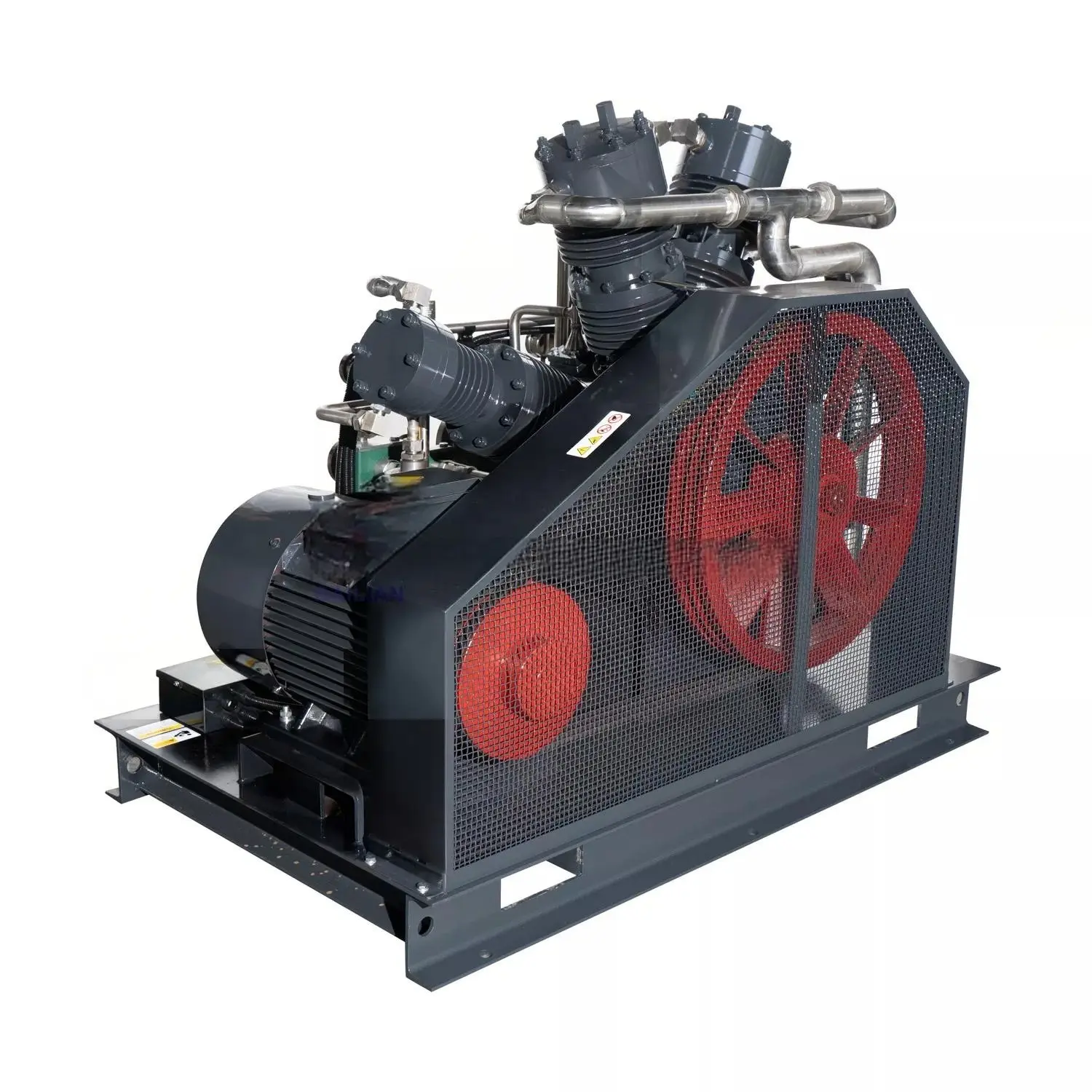

Oil-Free CO2 Compressor

Oil-Free CO2 Compressor

Oil-Free CO2 Compressor is a high-performance solution designed for handling carbon dioxide (CO2) gas. It is widely used in CO2 gas recovery and supercritical fluid extraction applications. The compressor features a robust crankcase design capable of operating under specific intake negative pressure and positive intake pressure conditions. With a flow rate range of 30-80 Nm³/h and discharge pressures of 20 or 30 bar, it offers reliable and efficient performance. The unit is skid-mounted, air-cooled, and includes three compression stages with four gas cylinders. Key components are made from durable materials such as stainless steel for gas valves and pipes, cast iron for the case and crankshaft, and filled PTFE for piston and guide rings. The complete supply includes the main engine, motor, cooler, start cabinet, and necessary accessories.

￥ 0.00
0.00


Oil-Free CO2 Compressor is a high-performance solution designed for handling carbon dioxide (CO2) gas. It is widely used in CO2 gas recovery and supercritical fluid extraction applications. The compressor features a robust crankcase design capable of operating under specific intake negative pressure and positive intake pressure conditions. With a flow rate range of 30-80 Nm³/h and discharge pressures of 20 or 30 bar, it offers reliable and efficient performance. The unit is skid-mounted, air-cooled, and includes three compression stages with four gas cylinders. Key components are made from durable materials such as stainless steel for gas valves and pipes, cast iron for the case and crankshaft, and filled PTFE for piston and guide rings. The complete supply includes the main engine, motor, cooler, start cabinet, and necessary accessories.

Key Advantages:

  • 100% Oil-Free Operation: Utilizing PTFE-filled piston rings, it guarantees oil-free compressed CO2, eliminating contamination risks for your process and product.

  • High Efficiency & Energy Saving: Designed for low energy consumption, it delivers more work with less power, providing a superior performance-to-energy ratio.

  • Robust & Corrosion-Resistant Construction: Critical components like the air valve and cylinder liner are made of stainless steel, ensuring excellent corrosion resistance and long service life.

  • Compact & Skid-Mounted: The pre-assembled, compact chassis allows for quick installation and easy relocation, minimizing downtime and site preparation costs.

  • Maintenance-Friendly: A simple structural design and air-cooling system reduce maintenance needs and simplify servicing.

Technical Data

ParameterValueParameterValue
Model127/0.5-18Cooling ModeAir Cooling
MediumCO2Shaft Power18.5 kW
Flow Rate127 Nm³/hMotor22 kW, 380V, 50Hz，3P /customized
Inlet Pressure0.05 MPa(G)Dimensions (LxWxH)1850x1250x1350 mm
Discharge Pressure1.8 MPa(G)Weight1.78 t
Compression Stages3Drive ModeV-Belt

Applications:
Pressurization, power supply, and blowing in industries such as Food & Beverage, Geological Storage, Power Plants, and various industrial gas applications.
