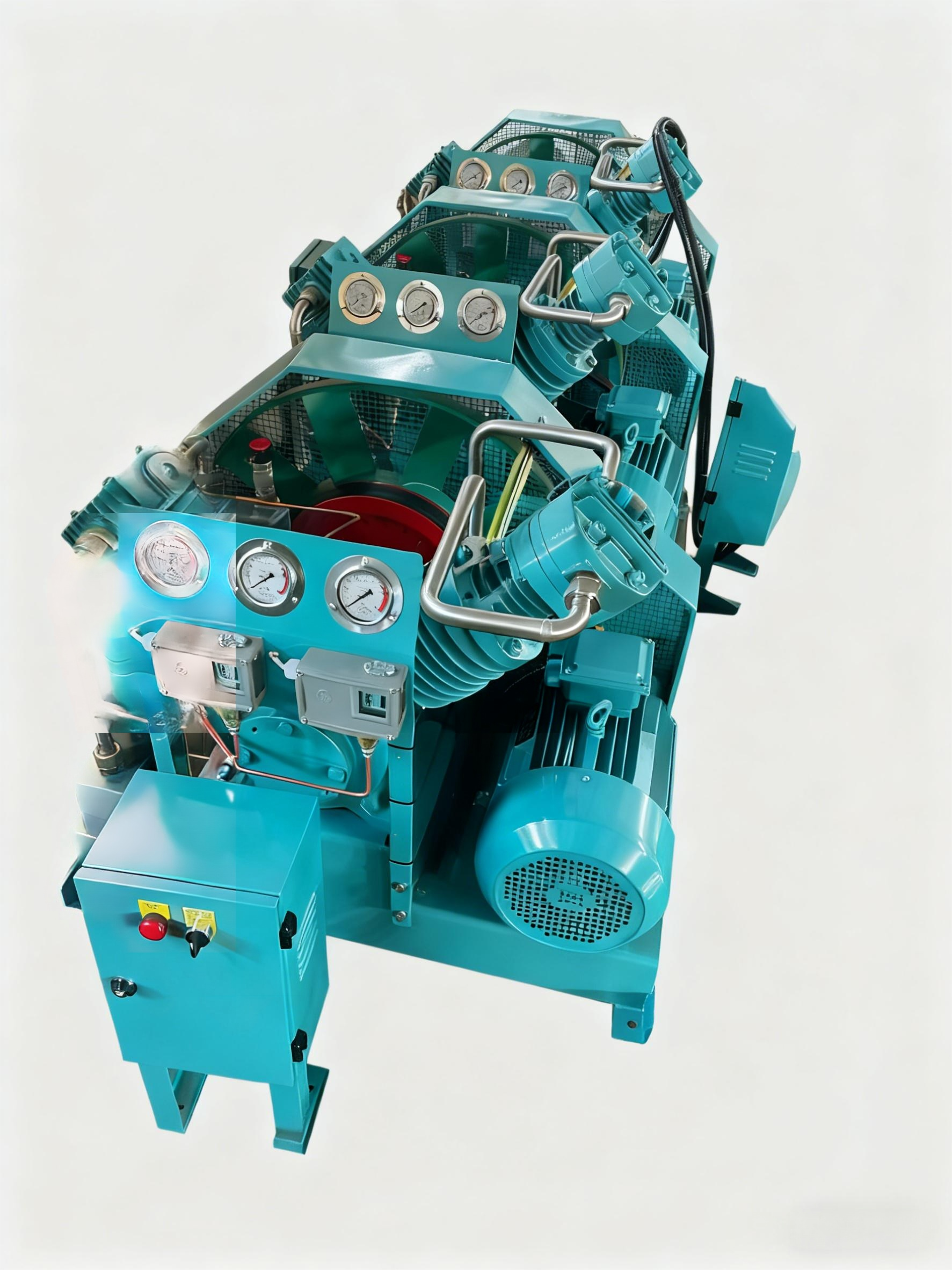

30m³ oil-free SF6 Gas compressor

30m³ oil-free SF6 Gas compressor

high-efficiency oil-free compressor specifically engineered for sulfur hexafluoride (SF₆) gas recovery in electrical power systems. Featuring a completely oil-free V-type design with all-stainless steel gas path components, this compressor ensures maximum gas purity and operational safety. With air-cooled operation and belt drive system, it provides reliable performance for SF₆ gas handling in high-voltage equipment maintenance.

￥ 0.00
0.00
Quantity：
Consultation


high-efficiency oil-free compressor specifically engineered for sulfur hexafluoride (SF₆) gas recovery in electrical power systems. Featuring a completely oil-free V-type design with all-stainless steel gas path components, this compressor ensures maximum gas purity and operational safety. With air-cooled operation and belt drive system, it provides reliable performance for SF₆ gas handling in high-voltage equipment maintenance.

SF6 compressor, sulfur hexafluoride compressor, SF6 gas recycling compressor, SF6 recovery system

Key Features

  • 100% Oil-Free Design: Ensures pure SF₆ gas output without contamination

  • Stainless Steel Gas Path: Corrosion-resistant materials for long service life

  • Compact V-Type Structure: Space-saving design for easy installation

  • Water-Cooled Operation: Efficient heat dissipation for continuous use

  • Belt Drive System: Smooth operation with minimal maintenance

  • Customizable Voltage: Available in 380V/50Hz or other specifications

  • Lightweight & Portable: Easy to transport and deploy on-site

TECHNICAL DATA

ParameterSpecificationParameterSpecification
MediumSF₆ GasQuantity1 Unit
Inlet Pressure0.2 MPa(G)Inlet Temperature≤40°C
Discharge Pressure5.0 MPa(G)Discharge Temperature≤50°C
Flow Rate30 Nm³/hPiston Stroke63 mm
Model24/2-50Compression Stages2
Structural StyleV-Type Oil-FreeCylinder Quantity2
Shaft Speed500 rpm ″Voltage380V/50Hz (Customizable)
Cooling ModeAir CoolingCooling Water Flow—
Shaft Power≤6.5 kWMain Motor Speed1440 rpm
Motor7.5 kW, 380V, 50Hz ″

Dimensions1100×750×1000 mm ″Weight360kg
Inlet/Outlet SizeM36×1.5 / M27×2Water Interface—
Drive ModeBelt Drive

Gas Contact Materials


– CylinderStainless Steel

– ValveStainless Steel

– Pipeline, CoolerStainless Steel, Aluminum Alloy

Sealing MethodMAGNETIC FLUID Sealing


Applications

  • SF₆ gas recovery from circuit breakers

  • High-voltage switchgear maintenance

  • Electrical substation servicing

  • SF₆ gas recycling and storage

  • Power utility maintenance programs

Important Note
Solemn Reminder: The gas compressed by the compressor must be dry and particulate-free!
