Product Overview:
series fixed-speed rotary screw air compressor is designed to meet the demanding air supply needs of modern industry. Combining advanced UK-engineered air-end technology with intelligent controls and premium components, it delivers exceptional reliability, extended service life, and reduced total cost of ownership. It is the ideal high-efficiency compressed air source for factories, manufacturing facilities, and large-scale construction projects.

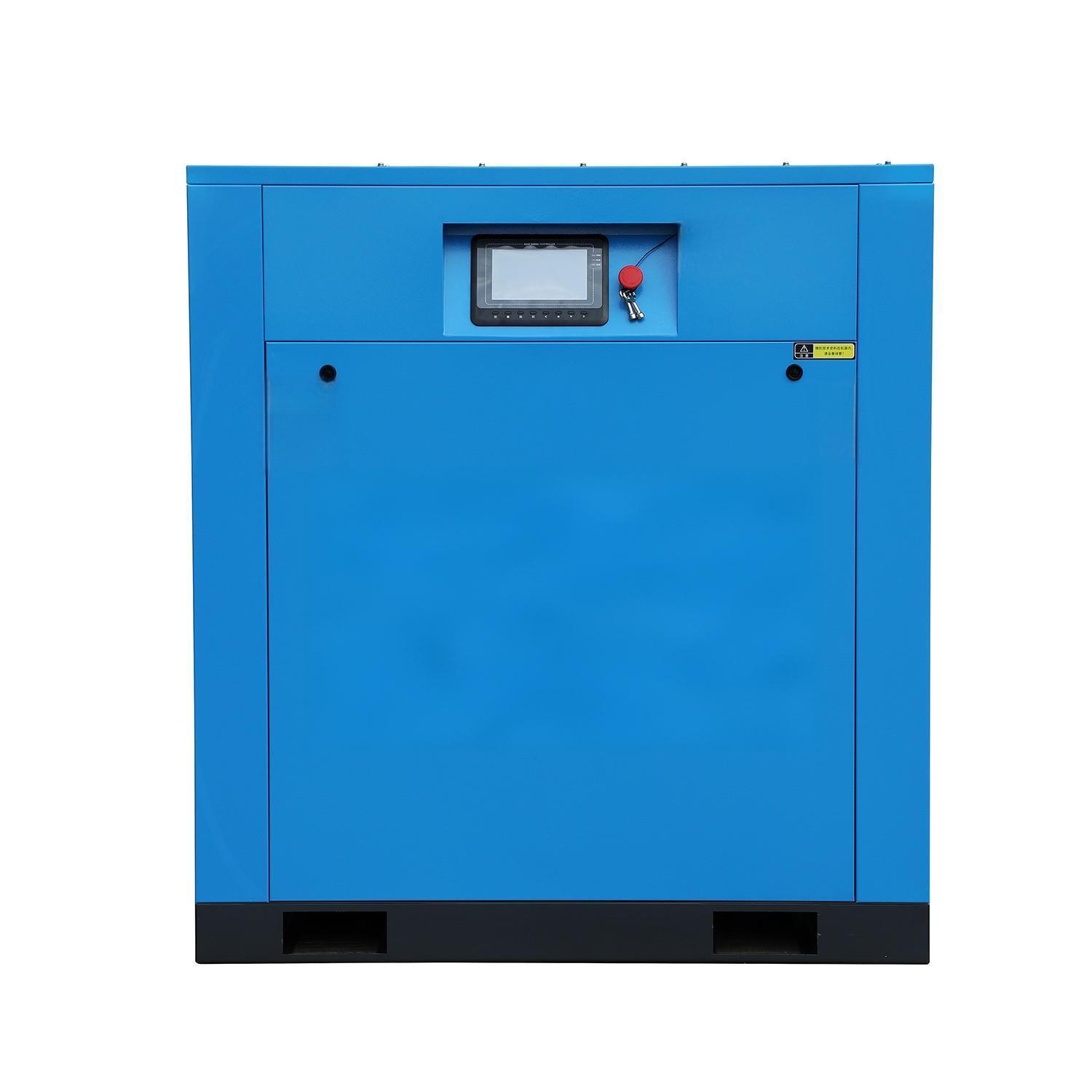

Fixed-Speed Rotary Screw Air Compressor
A robust, intelligent, and highly efficient air supply solution engineered for continuous-duty industrial applications.
Key Specifications:
Power Range: 7.5 kW to 535 kW
Discharge Pressure Options: 7, 8, 10, 13 bar
Core Advantages & Features
1. Superior Performance & Durability
High-Efficiency Air End: Features a UK-technology double-screw air end, engineered for low noise and an average service life exceeding 15 years.

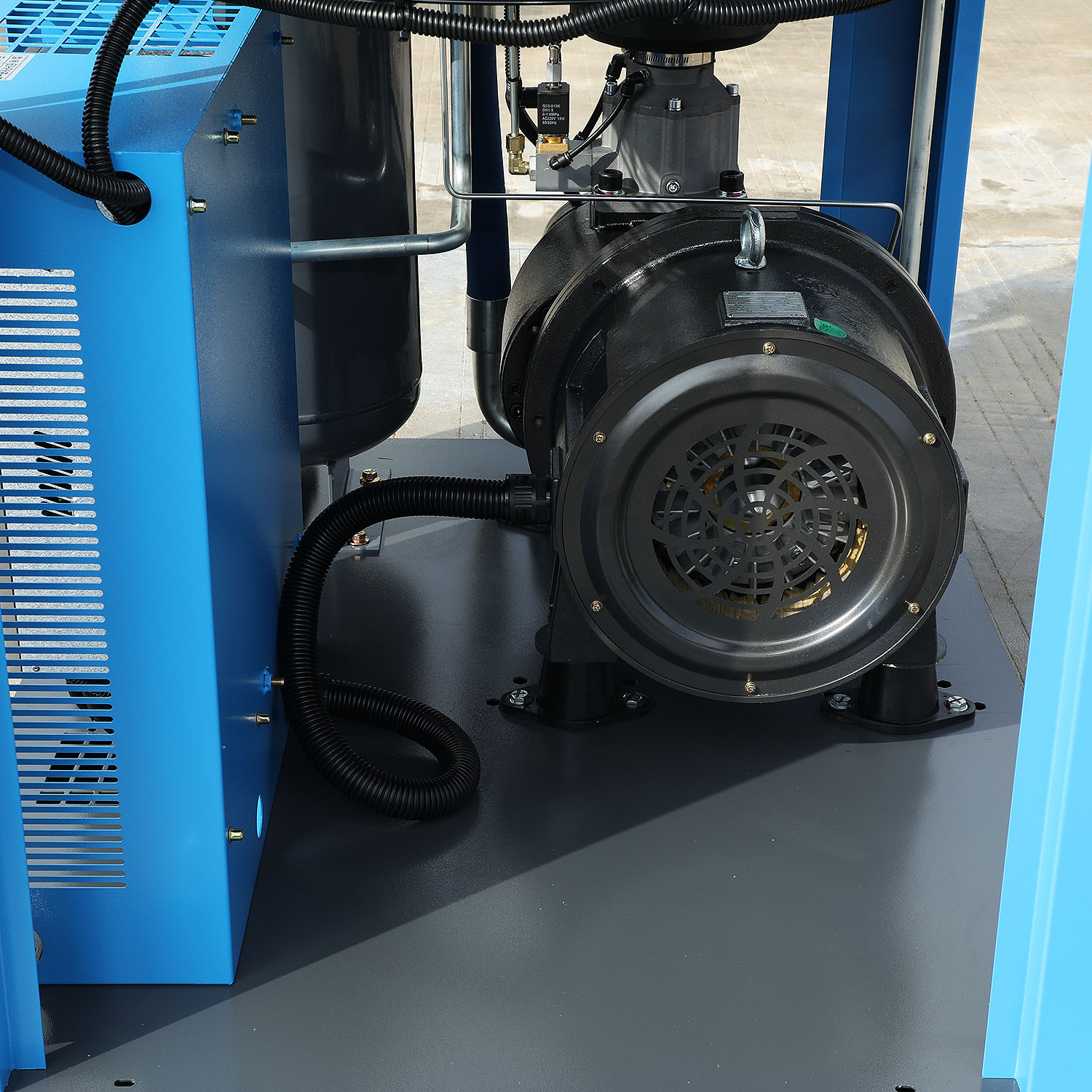

Premium Power Components: Utilizes an F-class insulation high-performance motor supported by SKF heavy-duty bearings for maximum reliability.
Demand-Responsive Air Intake: The Red Star inlet valve automatically modulates air volume to match system demand, enhancing efficiency.
2. Intelligent Control & Energy Savings
Smart PLC Control System: Customizable, multi-language controller enables 24/7 unattended operation with comprehensive fault diagnosis and system protection.
Auto Start/Stop Function: Automatically shuts down during periods of low demand to eliminate idle energy waste, and restarts seamlessly when air is required.
3. Robust Environmental Adaptability
Built for Tough Conditions: Reliably operates in high-temperature and humid environments.
Simplified Installation: Requires no special foundation, reducing installation time and cost.
Compact & Quiet Design: Incorporates noise-reduction features and needs only minimal space for ventilation and service access.
4. Simplified Operation & Maintenance
Intuitive User Interface: Easy-to-navigate controls for straightforward monitoring and operation.
Reduced Maintenance Effort: Standardized, readily accessible components make routine tasks (like filter replacement) simple and fast, minimizing downtime.
Technical parameter
| Model | Air Delivery (m³/min) | Discharge Pressure (MPa) | Lubricating Oil Quantity (L) | Power (kW) | Power Supply | Starter | Exterior Dimension (L×W×H, mm) | Weight (kg) | Inlet/Outlet Connection |
|---|---|---|---|---|---|---|---|---|---|
| 10A | 1.2 / 0.7 | 0.8 / 1.0 | 4 | 7.5 | 380V/50Hz | Y-Δ | 690×780×1770 | 850 | G1 |
| 15A | 1.65 / 0.7 | 1.5 / 1.0 | 7.5 | 11 | 380V/50Hz | Y-Δ | 790×820×1930 | 1100 | G1 |
| 20A | 2.9 / 0.7 | 2.3 / 1.0 | 8 | 15 | 380V/50Hz | Y-Δ | 850×1180×1930 | 1250 | G1 |
| 25A | 3.8 / 0.7 | 3.0 / 1.0 | 14 | 18.5 | 380V/50Hz | Y-Δ | 950×1180×1930 | 1350 | G1½ |
| 30A | 3.8 / 0.7 | 3.0 / 1.0 | 14 | 22 | 380V/50Hz | Y-Δ | 1000×1180×1930 | 1500 | G1½ |
| 40A | 5.3 / 0.7 | 4.5 / 1.0 | 30 | 30 | 380V/50Hz | Y-Δ | 1000×1588×1900 | 1588 | G1½ |
| 50A | 6.8 / 0.7 | 5.7 / 1.0 | 30 | 37 | 380V/50Hz | Y-Δ | 1000×1588×1900 | 1588 | G1½ |
| 60A | 7.4 / 0.7 | 6.2 / 1.0 | 72 | 45 | 380V/50Hz | Y-Δ | 1000×1588×1900 | 1588 | G1½ |
| 75A | 10.0 / 0.7 | 8.5 / 1.0 | 65 | 55 | 380V/50Hz | Y-Δ | 1230×1570×2180 | 1800 | G2 |
| 100A | 13.4 / 0.7 | 11.2 / 1.0 | 72 | 75 | 380V/50Hz | Y-Δ | 1230×1722×2180 | 1900 | G2 |
| 120A | 16.2 / 0.7 | 13.8 / 1.0 | 72 | 90 | 380V/50Hz | Y-Δ | 1230×1327×2180 | 1900 | G2½ |
| 150A | 21.9 / 0.7 | 18.4 / 1.0 | 90 | 110 | 380V/50Hz | Y-Δ | 1700×1801×2400 | 2300 | G2½ |
| 175A | 24.5 / 0.7 | 20.2 / 1.0 | 110 | 132 | 380V/50Hz | Y-Δ | 1650×1848×2400 | 2400 | G2½ |
| 200A | 28.7 / 0.7 | 22.7 / 1.0 | 110 | 160 | 380V/50Hz | Y-Δ | 1650×1848×2400 | 2650 | G2½ |
| 250A | 38.6 / 0.7 | 30.4 / 1.0 | 125 | 185 | 380V/50Hz | Y-Δ | 1650×2003×2600 | 3000 | G2½ |
| 300A | 42.0 / 0.7 | 33.9 / 1.0 | 125 | 220 | 380V/50Hz | Y-Δ | 2100×2305×2600 | 3100 | DN100 |
| 350A | 48.5 / 0.7 | 40.5 / 1.0 | 125 | 250 | 380V/50Hz | Y-Δ | 2100×2305×2600 | 3100 | DN100 |
Wide Range of Applications and Specific Scenarios
As the "fifth major energy source" in factories, screw air compressors provide compressed air that is widely used in various industrial sectors.
Manufacturing and Automated Production
Automotive Manufacturing: Powering pneumatic tools such as tightening guns and riveting machines on assembly lines, painting robots, welding equipment, parts blowing, and tire inflation.
Electronics and Semiconductors: Providing precision air supply for SMT placement machines and wave soldering equipment. Also used for PCB board cleaning, component testing, and environmental control in cleanrooms.
Plastics and Packaging: Supporting mold opening and closing, product ejection in injection molding machines, PET molding in blow molding machines, and labeling, sealing, and filling on packaging lines.
Food and Beverage: Driving filling lines and packaging equipment, and pneumatic conveying of raw materials. Food-grade lubricants or oil-free compressors must be used to meet hygiene standards.
Engineering and Infrastructure Construction
Mining: Providing power for underground or open-pit mining equipment such as rock drills, pneumatic picks, and bolt drills, requiring equipment to be explosion-proof, robust, and durable.
Building Construction: Driving installation tools for concrete spraying machines, piling equipment, pneumatic rammers, sprayers, and scaffolding.
Railway and Bridge: Used for pneumatic control of track spike tightening, bridge maintenance spraying, tunnel ventilation, and large components.
Energy, Chemical Industry, and Process Flow
Petrochemical Industry: Providing stable, dry, and oil-free instrument air for instrument air systems, controlling valves and critical process flows. Also used for flare ignition and pipeline purging.
Power Industry: Supporting pneumatic actuators for ash removal systems and flue gas desulfurization units in power plants, as well as pneumatic tools for equipment maintenance.
Pharmaceutical and Bioengineering: Used for aeration and mixing in fermenters, liquid transport, product drying, and maintaining cleanroom environments, requiring extremely high levels of sterility and oil-free air.
Other Key Areas
Textile Industry: Driving air-jet looms and texturing machines, providing high-speed, stable airflow.
Medical Devices: Providing clean air for the manufacture of dental chairs, surgical instruments such as air drills and bone saws, and ventilators.
How to Choose Your Air Compressor Configuration?
Choosing the right screw air compressor solution is the first step in energy saving and consumption reduction. We recommend considering the following factors:
Air Demand Analysis: Determine your maximum or average air consumption, operating pressure, and required air quality level.
Equipment Selection: Select a constant frequency or variable frequency model, air-cooled or water-cooled cooling method, and oil-lubricated or oil-free main unit based on your needs.
System Planning: Rationally configure post-processing equipment such as gas storage tanks, dryers, and filters, and design a centralized gas supply pipeline network to maximize system efficiency.
