Product Overview
The PM VSD Series Permanent Magnet Variable Speed Drive Screw Air Compressor integrates Permanent Magnet Synchronous Motor (PMSM) technology with Variable Frequency Drive (VFD) control. Through an intelligent control system, it precisely matches compressed air output with actual demand in real-time, achieving significant energy savings. This makes it ideal for industrial applications with fluctuating air consumption. The series offers multiple models covering a power range from 7.5kW to 250kW and working pressures from 0.7 to 1.25 MPa, meeting diverse industrial requirements.

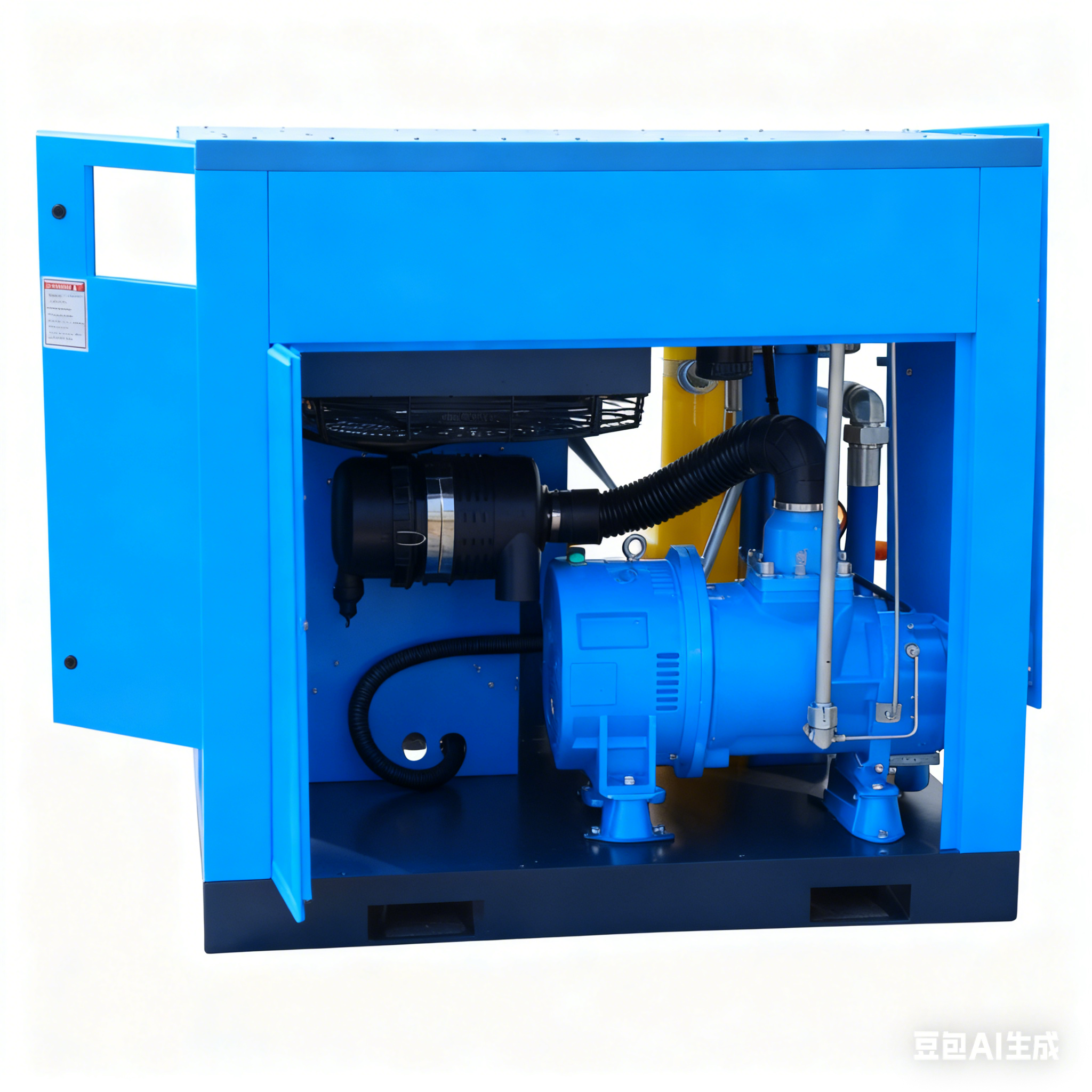

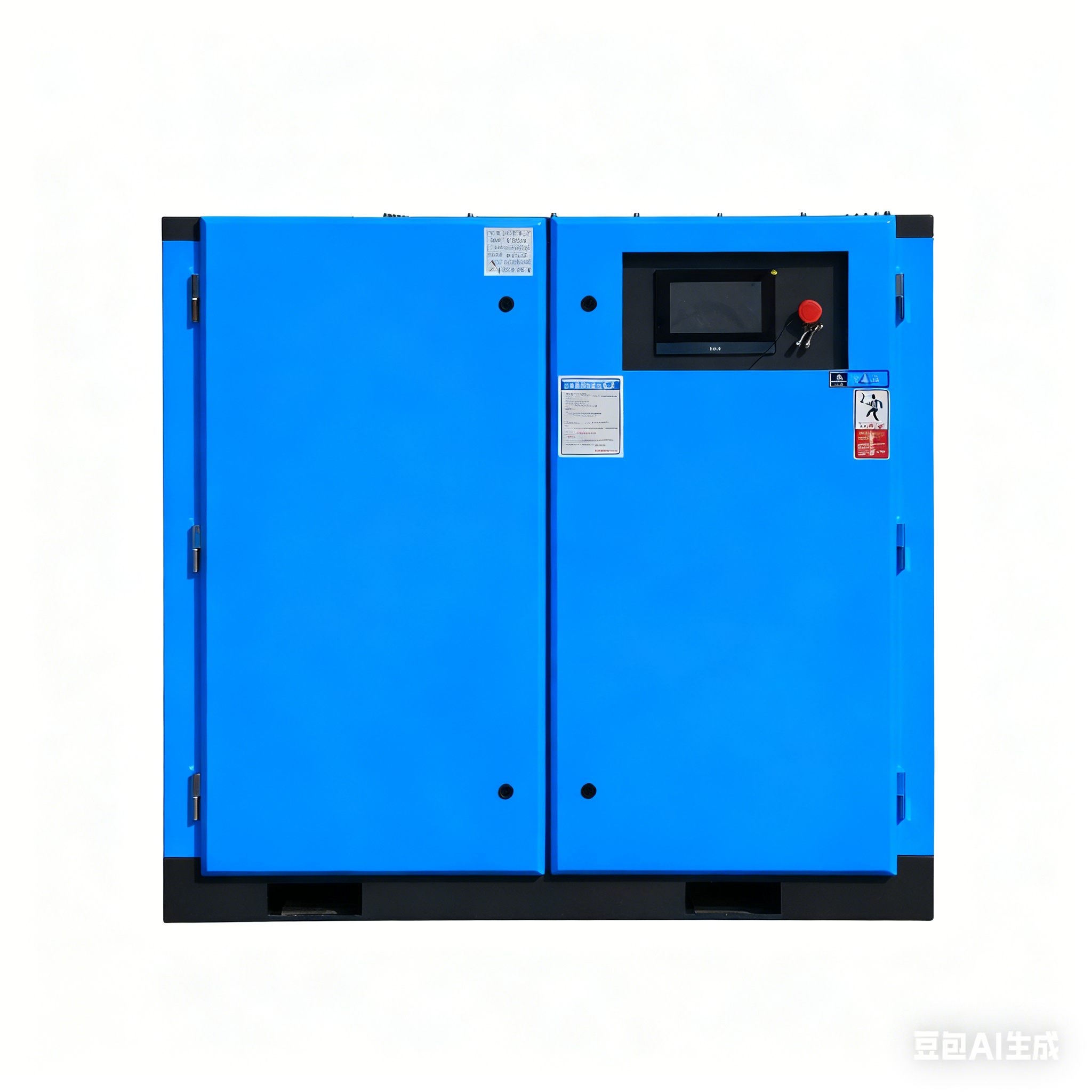

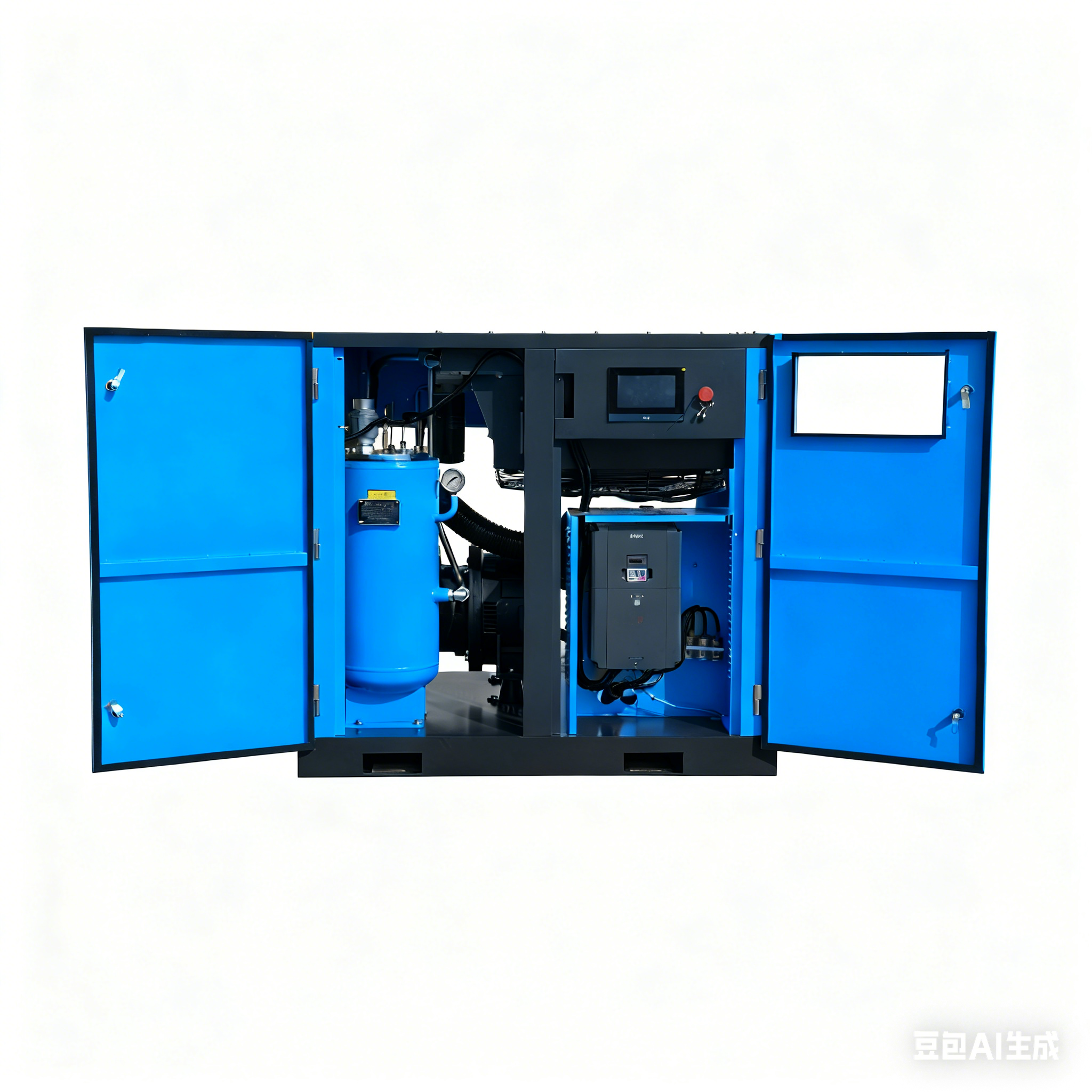

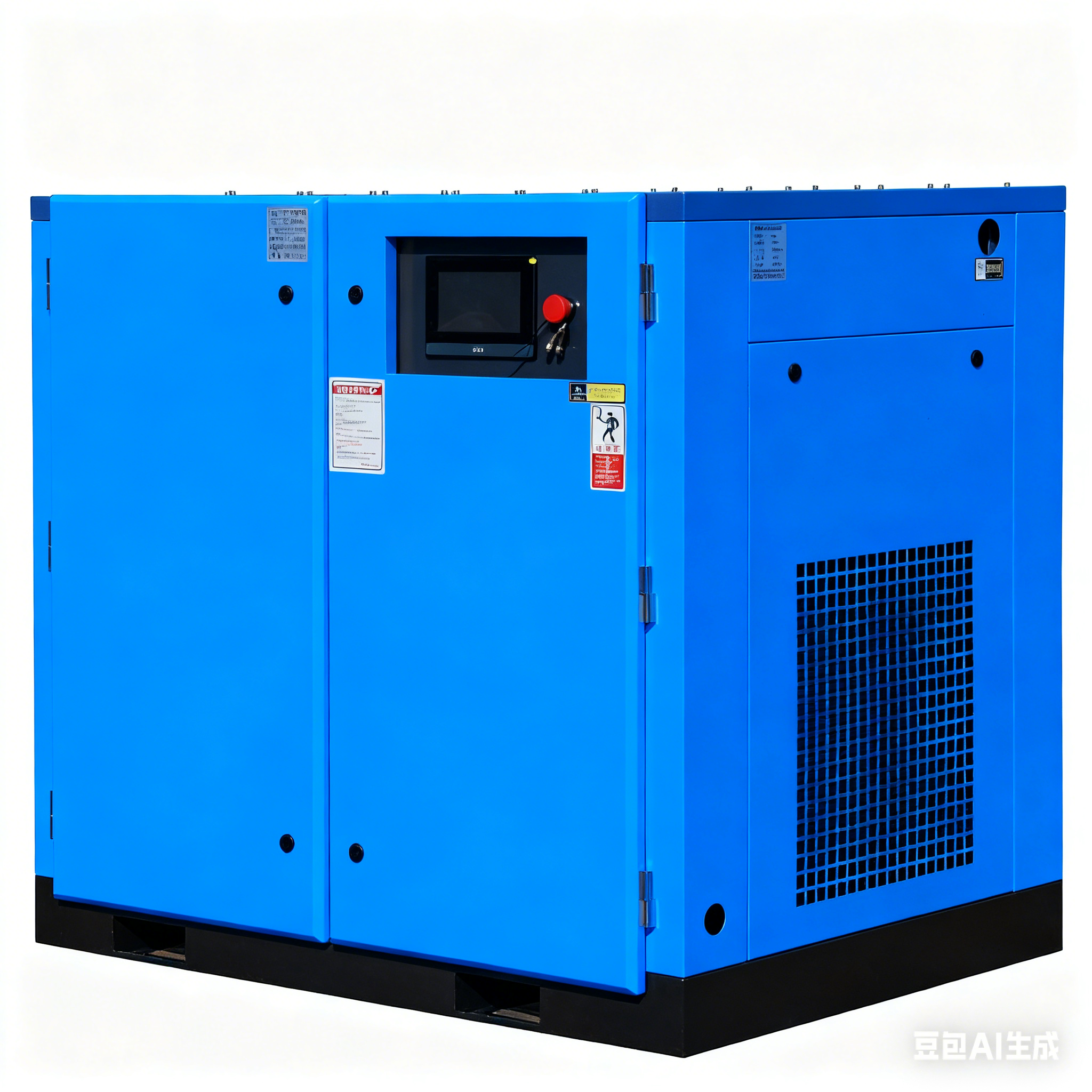

PM VSD Series Permanent Magnet Variable Speed Drive Screw Air Compressors
Core Advantages
1. High Efficiency & Energy Savings
Utilizes Permanent Magnet Synchronous Motors (PMSM), delivering higher efficiency, especially under partial load conditions.
Combined with Variable Frequency Drive (VFD) technology for "on-demand air supply," eliminating energy waste during idle or unloading periods. Achieves comprehensive energy savings of 20-40%.
Features an optimized Twin-Screw Air End design for high efficiency across a wide pressure range.
2. Stable & Reliable Operation
Soft Start/Soft Stop functionality reduces impact on the power grid and minimizes mechanical wear, extending equipment lifespan.
Precise Closed-Loop Pressure Control ensures highly stable line pressure (fluctuations as low as ±0.01 MPa).
Operates with low noise and vibration under low-load conditions, improving the working environment.
3. Intelligent Control
Equipped with a Full-Color Touchscreen Controller, supporting multiple languages for real-time monitoring, energy consumption analysis, fault diagnosis, and early warning.
Supports Remote Monitoring & Data Management for centralized control of multiple units.
Adaptive control logic optimizes operational parameters, reducing manual intervention and enabling "unattended" operation.
4. Flexible Integration
Optional Integrated Unit Design with built-in refrigerant dryer, filters, and air receiver saves space.
Features Coaxial Direct Drive for a compact structure, high transmission efficiency, and maintenance-free operation.
Technical Specifications
| Parameters | 10A | 15A | 20A | 40A | 50A | 75A | 100A | 150A | 175A |
|---|---|---|---|---|---|---|---|---|---|
| Motor Power (kW) | 7.5 | 11 | 15 | 22 | 37 | 55 | 75 | 110 | 132 |
| Air Delivery (m³/min) @ 0.7MPa | 1.20 | 1.68 | 2.50 | 3.80 | 6.80 | 10.0 | 13.4 | 16.2 | 24.5 |
| @ 0.8MPa | 0.98 | 1.79 | 2.16 | 3.39 | 5.96 | 8.77 | 11.7 | 15.0 | 23.2 |
| @ 1.0MPa | 0.95 | 1.31 | 2.10 | 3.20 | 5.90 | 8.50 | 11.2 | 13.8 | 20.5 |
| @ 1.25MPa | 0.81 | 1.10 | 1.90 | 2.70 | 5.00 | 7.80 | 10.0 | 12.3 | 17.4 |
| Lubricating Oil (L) | 3.5 | 7.5 | 12 | 16.5 | 45 | 50 | 72 | 90 | - |
| Dimensions (L×W×H, mm) | 900×700×880 | 1080×780×1000 | 1080×880×1200 | 1300×980×1200 | 1600×1200×1500 | 1650×1200×1500 | - | 2454×1500×1810 | - |
| Weight (kg) | 140 | 206 | 210 | 298 | 443 | 834 | 1047 | 1746 | 1790 |
| Outlet Connection | G½ | G¼ | G1 | G1¼ | G2 | G2 | G2½ | DN80 | DN100 |
Personalized Control System
The system provides real-time monitoring of operational status, with the display alerting users for maintenance or inspection when anomalies are detected.

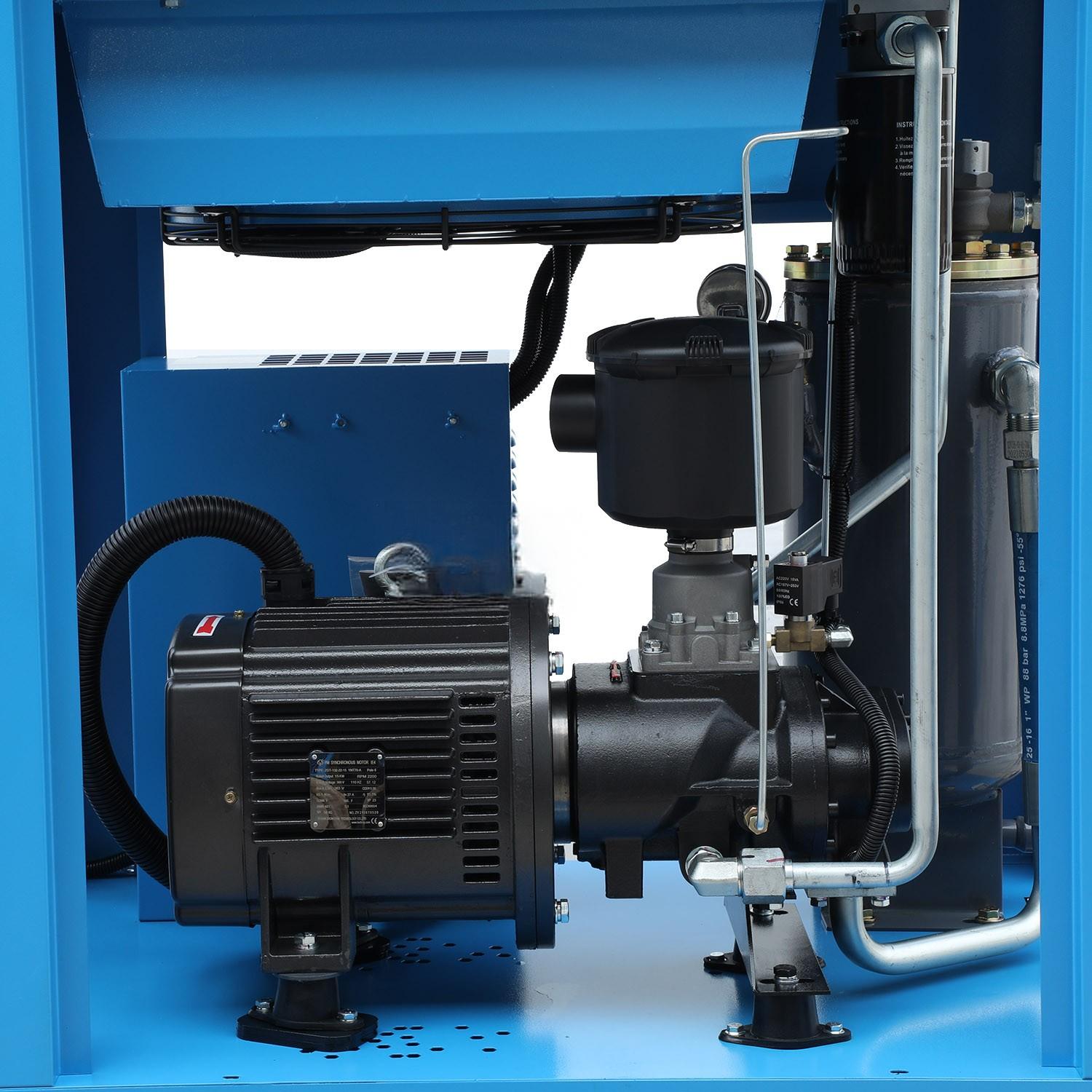

Electrical Control System
Utilizes fully sealed, Class F insulated, high-efficiency motors equipped with imported SKF bearings.
High-quality electrical components comply with international certifications such as CE, UL, and CSA.
Microcomputer Control System Features
Phase Loss Protection: Automatically cuts off power if any one or two phases of the three-phase power supply are disconnected.
Phase Sequence Protection: Prevents startup if the phase sequence is incorrect.
Temperature Protection: Automatically shuts down after several minutes of no-load operation and restarts when air is required.
Air Volume Adjustment: Automatically adjusts exhaust volume to match air demand.
High-Efficiency Oil-Gas Separation System
Equipped with a large-sized oil-gas separator and oil return device, effectively reducing compressed air flow velocity and minimizing oil content in the outlet compressed air.
Basic Parameters
| Parameter | Description |
|---|---|
| Lubrication Style | Oil-Injected |
| Cooling System | Air Cooling |
| Motor Protection Class | IP23, IP54, IP55 (Optional) |
| Air End Brand | Baosi / Hanbell |
| Control System | PLC Control, Multi-Language Display |
| Installation Type | Stationary |
| Structure Type | Enclosed Canopy Design |
| Power Supply | 380V/50Hz (Customizable) |
| Startup Mode | Variable Frequency Startup |
Application Scenarios
Manufacturing: Automotive, Electronics, Plastics, Food & Beverage industries
Engineering & Infrastructure: Mining, Construction, Railways & Bridges
Energy & Chemical Industries: Petrochemicals, Power Generation, Pharmaceuticals
Others: Textile, Medical Equipment, etc.
Selection Guide
Analyze Air Demand: Determine maximum/average air consumption, working pressure, and air quality requirements.
Model Selection: Choose the appropriate model based on power, pressure, and cooling method requirements.
System Planning: Properly configure auxiliary equipment such as air receivers, dryers, and filters, and design a centralized compressed air piping network.
