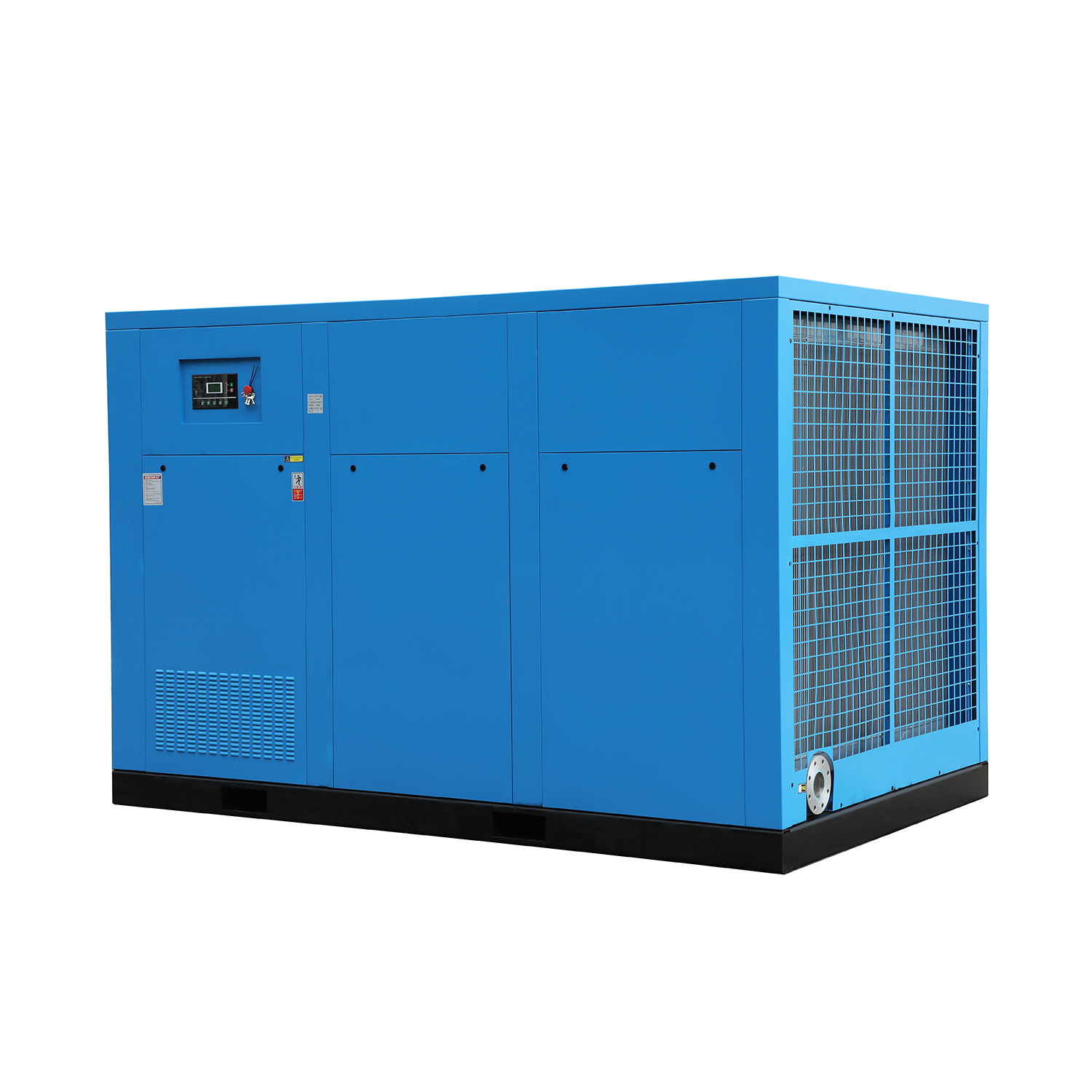

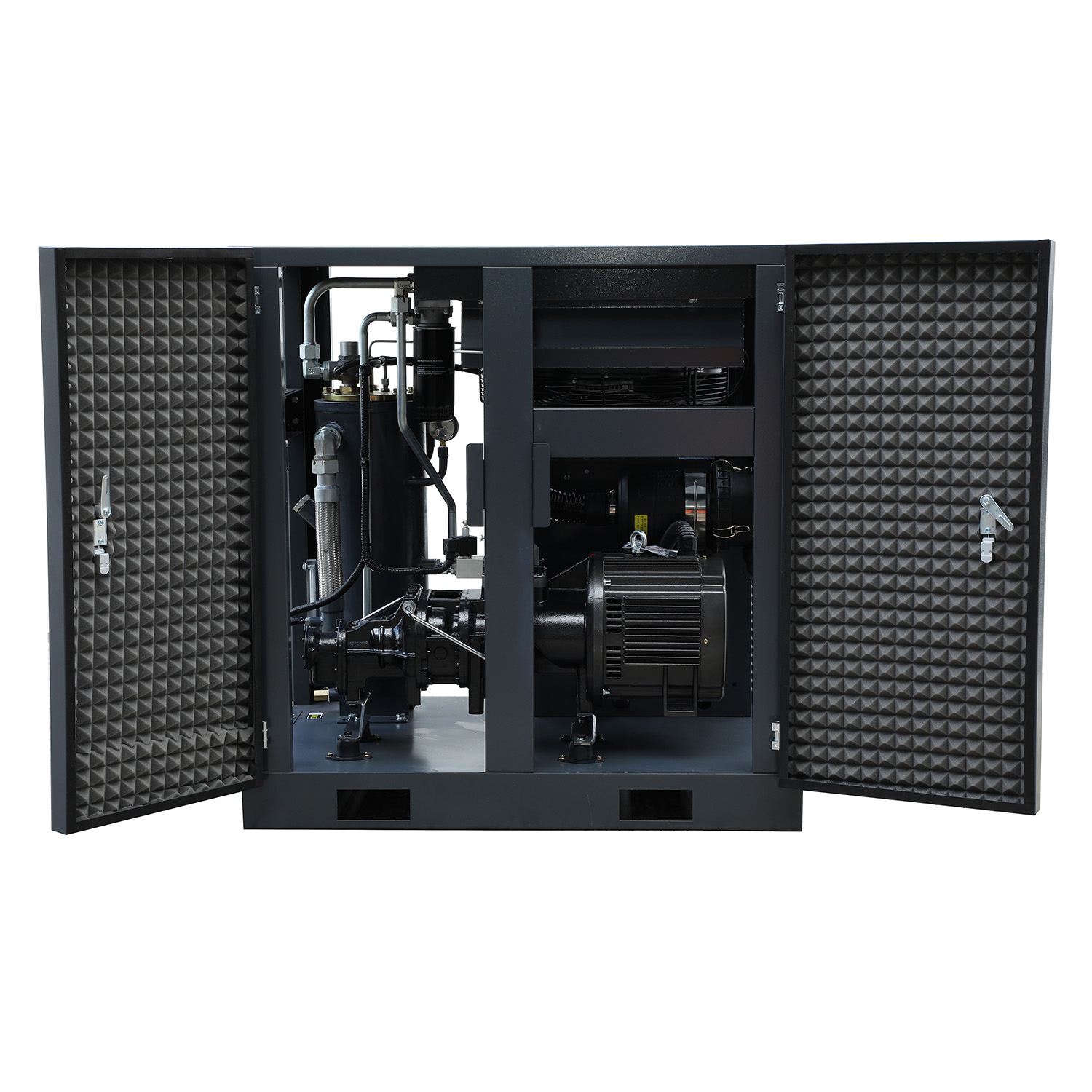

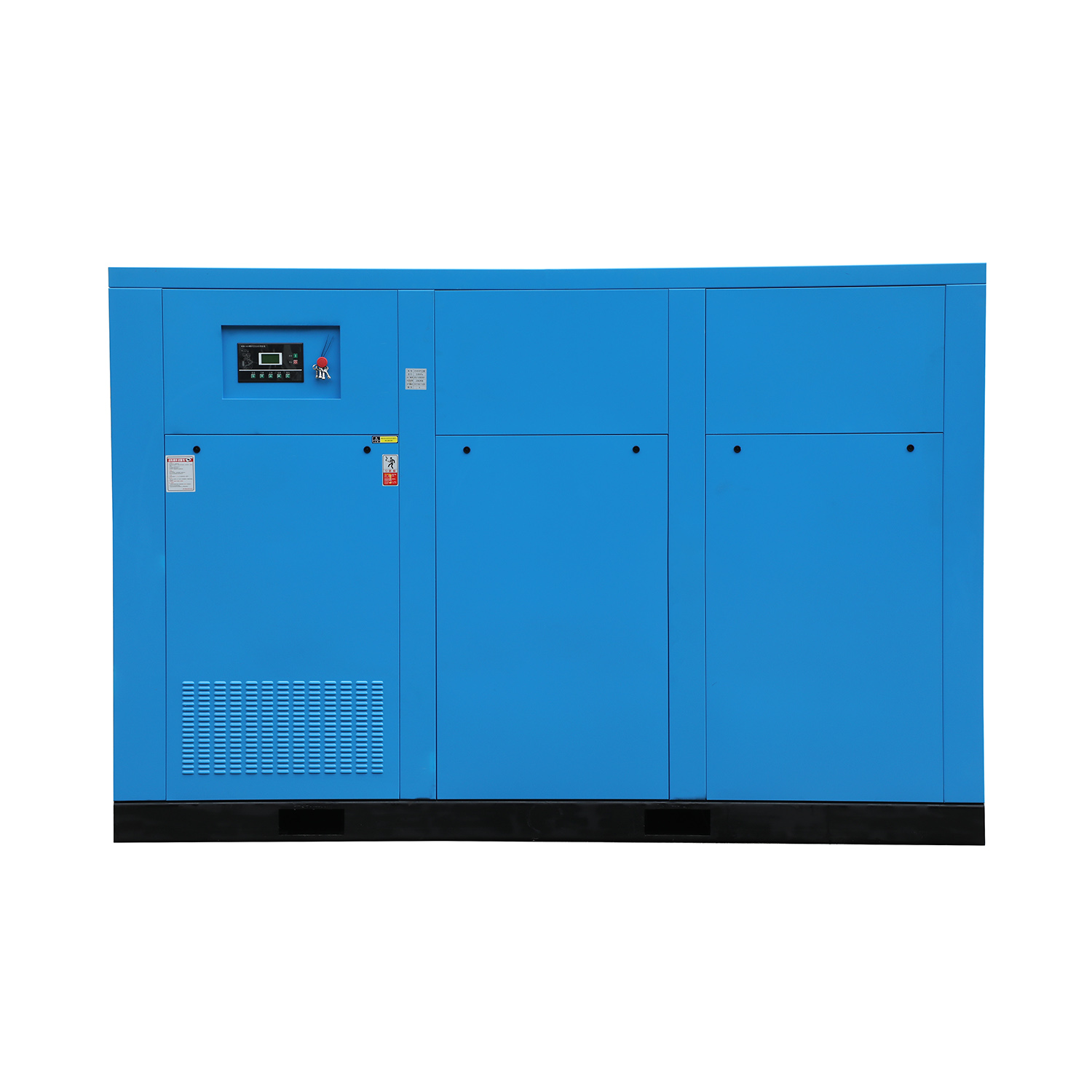

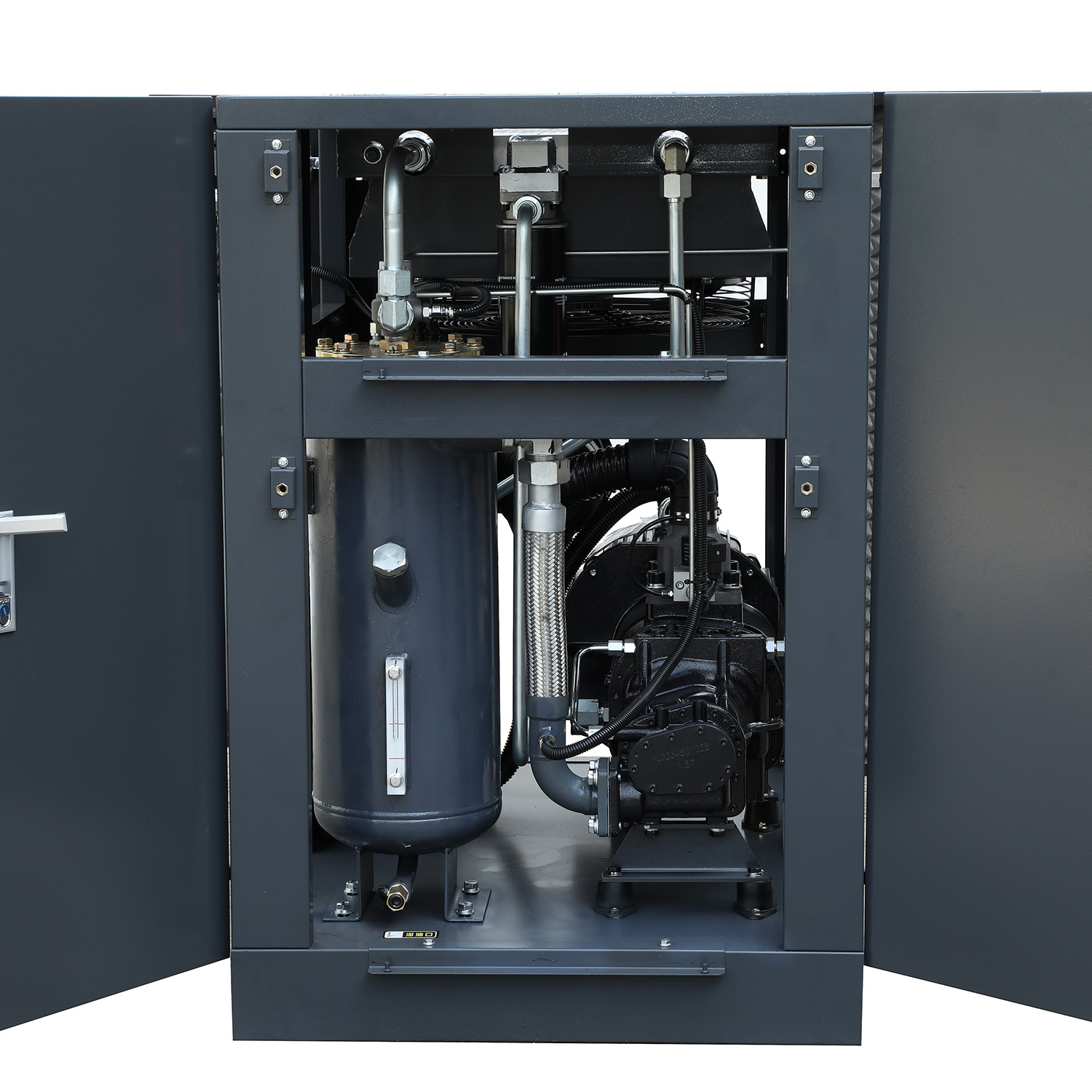

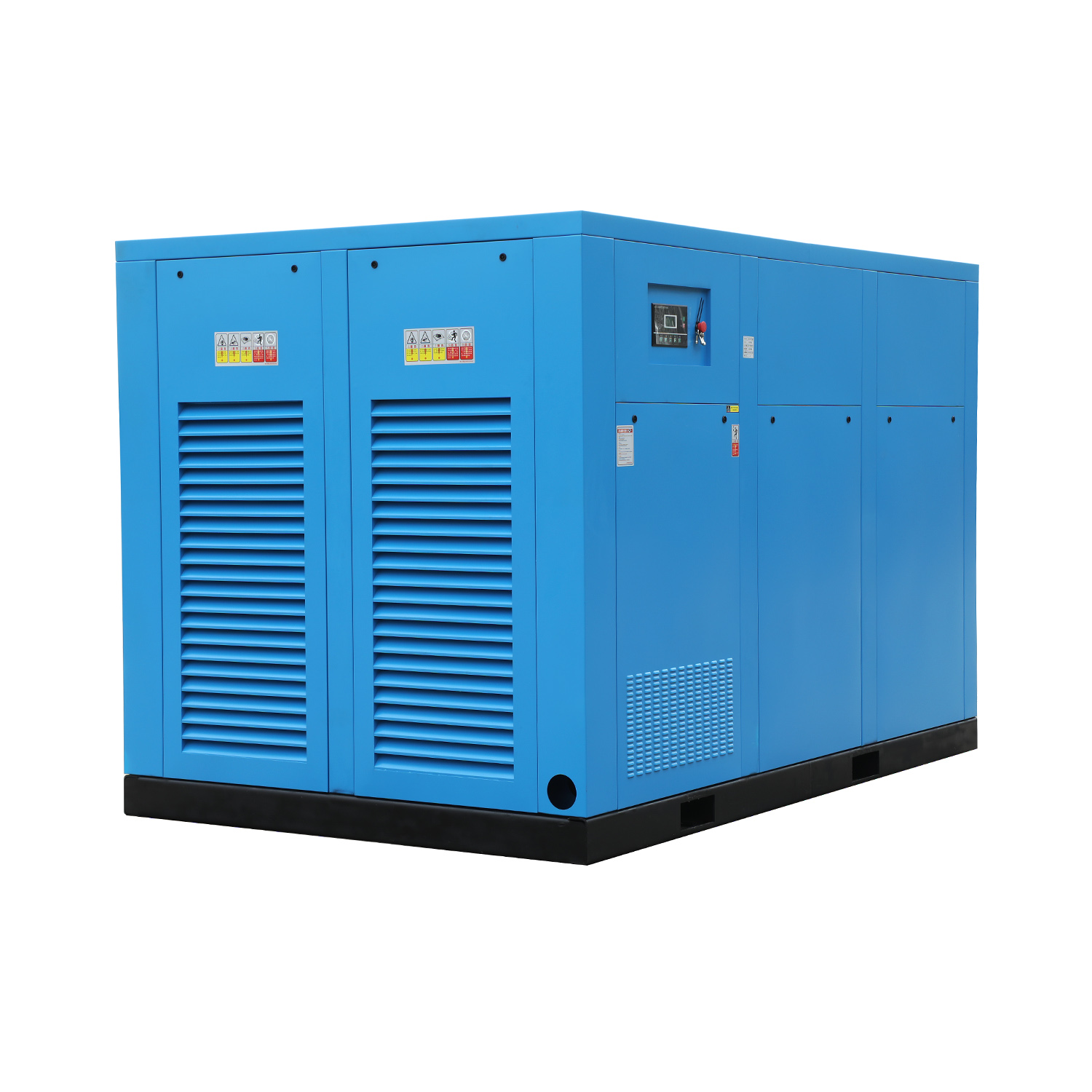

Two Stage VSD Screw Air Compressor

Two Stage VSD Screw Air Compressor

Two-Stage Screw Air Compressor - Product Brief

Our two-stage screw air compressor series is engineered for superior efficiency, durability, and performance in demanding industrial environments. Featuring an advanced two-stage compression design, it delivers greater air output with lower energy consumption compared to conventional single-stage compressors.


￥ 0.00
0.00
Quantity：
Consultation


Two-Stage Screw Air Compressor - Product Brief

Our two-stage screw air compressor series is engineered for superior efficiency, durability, and performance in demanding industrial environments. Featuring an advanced two-stage compression design, it delivers greater air output with lower energy consumption compared to conventional single-stage compressors.


High Efficiency Energy-Saving Silent Air Compressor Two Stage VSD-Inverter-Screw-Type

Features

  • High-efficiency two-stage compression design for optimal energy savings

  • Low noise and vibration levels during operation

  • Robust construction with durable components for extended service life

  • Compact external dimensions for flexible installation

  • Multiple models available to meet varying airflow and pressure demands

Advantages

  • Higher air delivery per unit of power compared to single-stage compressors

  • Reduced operating temperature and lower lubricant consumption

  • Enhanced reliability and reduced maintenance requirements

  • Suitable for continuous heavy-duty operations

  • Energy-efficient performance leading to lower operational costs

Technical Parameters Table

ParameterModel 30AModel 50AModel 60AModel 75AModel 100AModel 120AModel 180AModel 176A
Exhaust Volume (m³/min) / Pressure (MPa)3.9 / 0.76.9 / 0.78.9 / 0.711.2 / 0.715.0 / 0.720.0 / 0.722.0 / 0.726.0 / 0.7

3.8 / 0.86.8 / 0.88.8 / 0.811.0 / 0.814.8 / 0.819.9 / 0.821.2 / 0.825.8 / 0.8

3.5 / 1.06.5 / 1.07.8 / 1.08.8 / 1.012.9 / 1.017.8 / 1.018.8 / 1.023.5 / 1.0
Lubricant Quantity (L)16.545455055656570
Noise Level [dB(A)]6842––7242–75
Driving ModeBelt / Direct Drive (based on model)






Motor Power (kW)323745557590110132
Power Supply380V / 50Hz (3-phase)






Starting ModeStar-Delta / Direct Online






External Dimensions (L×W×H, mm)1254×900×11901454×1100×13001754×1200×15501854×1300×15501914×1300×1600–2454×1500×1840–
Weight (kg)4505809259701170174617501790
Outlet DiameterG1G1½–G2



Applications

  • Manufacturing and industrial production lines

  • Automotive and machinery workshops

  • Textile and printing industries

  • Food and beverage processing

  • Chemical and pharmaceutical plants

  • Construction and pneumatic tool operation
